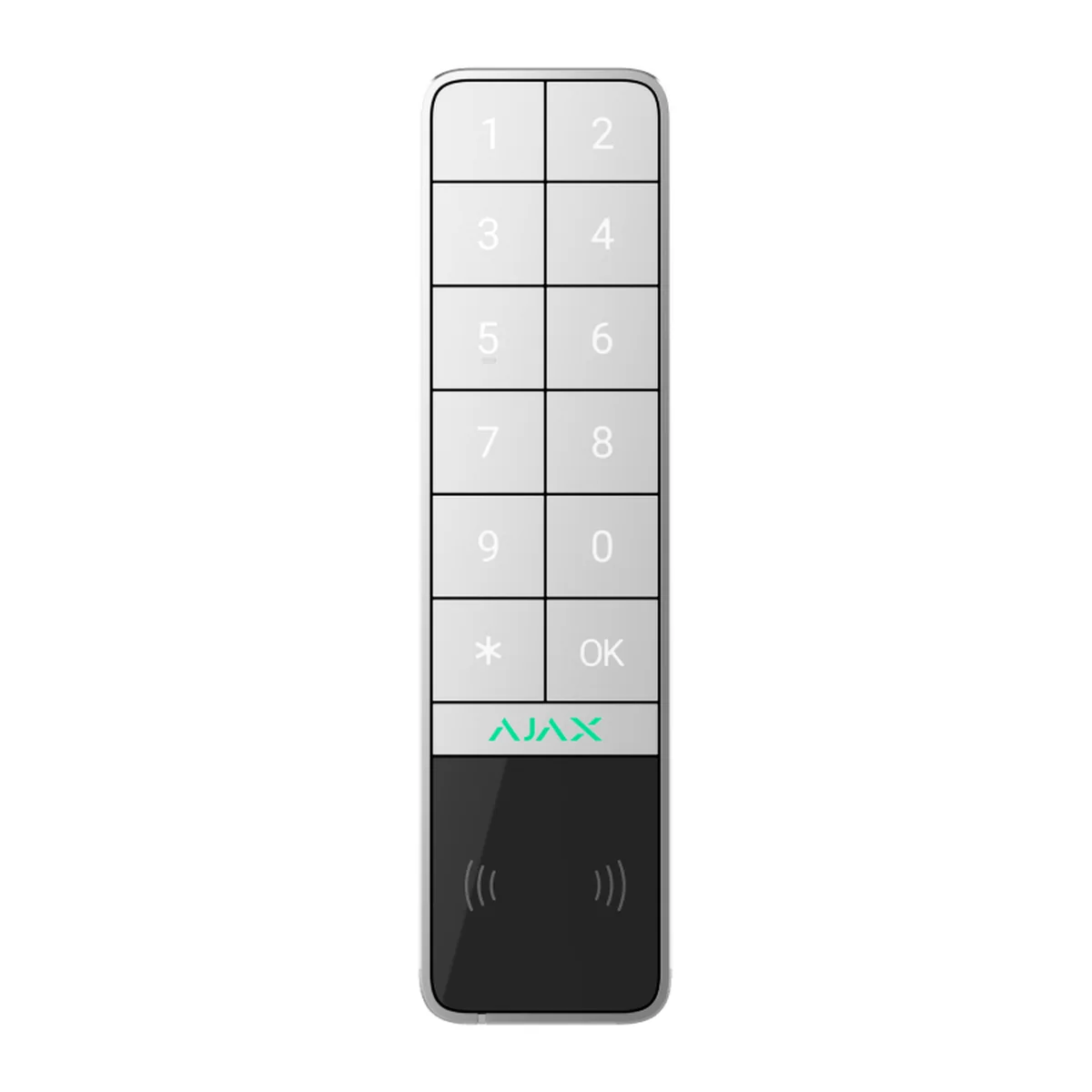

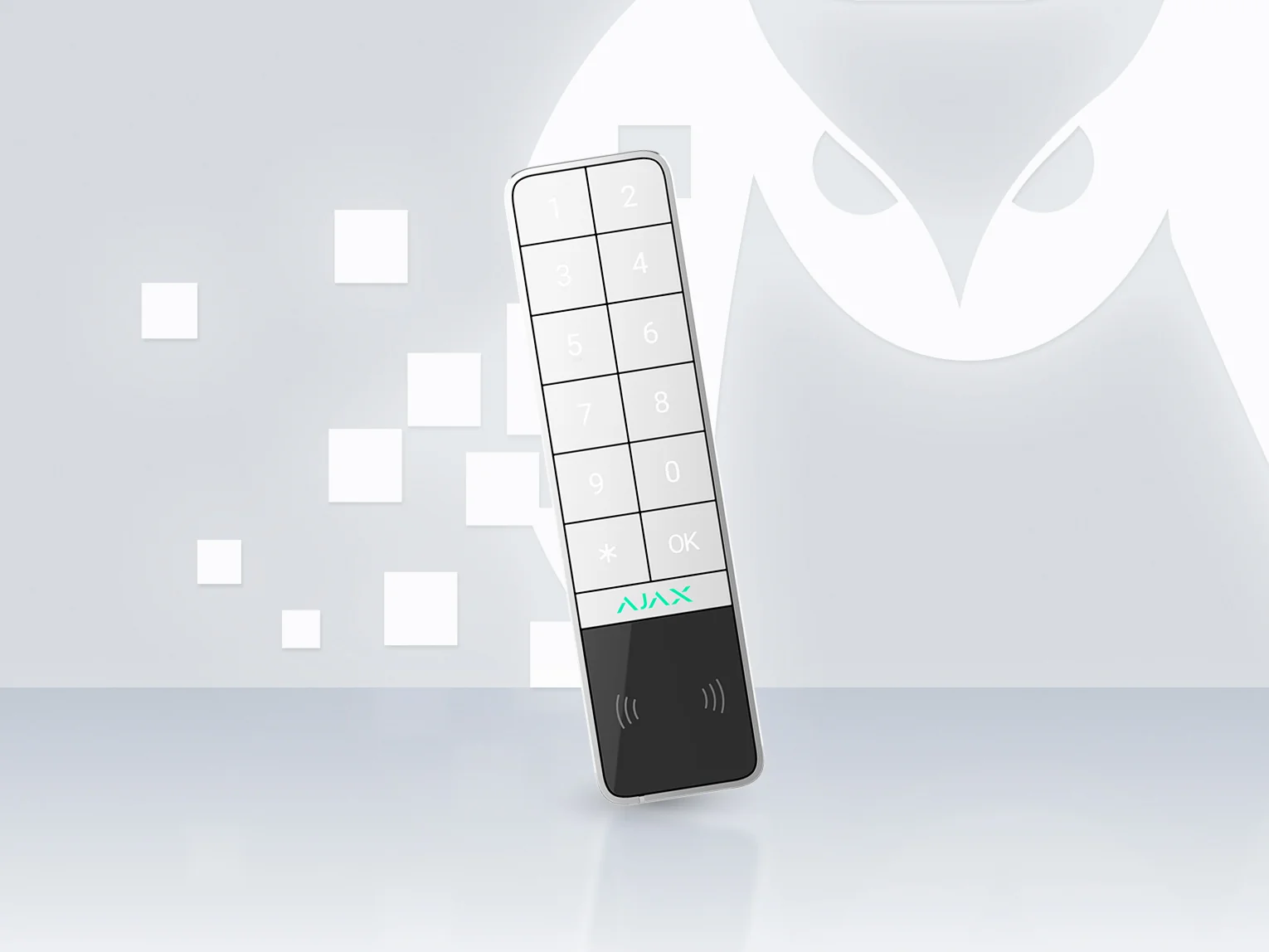

AJAX KeyPad Outdoor Jeweller White
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX KeyPad Outdoor Jeweller |
| Type | Wireless keypad with Pass, Tag, smartphone and code authentication, for outdoor and indoor use |
| Keypad functions | Switching security modes, managing automation devices, starting entry delays. One primary and one secondary function, switched by a long press on OK |
| Authentication | Access codes, Tag key fobs, Pass cards, smartphone via Bluetooth Low Energy (Android and iOS, BLE 4.2 or later) |
| Access codes | Keypad code: 1. User codes, codes for unregistered users and duress codes: up to 50 each per keypad; the total depends on the hub |
| Contactless standard | DESFire EV1, EV2, EV3, ISO 14443-A (13.56 MHz) |
| Other features | Arming without a code (optional), group security management, two-factor confirmation with a passcode |
| Function button | Panic (alarm to the monitoring station and users, sirens on), mute fire alarm, or off |
| Indication | LEDs for the security mode, detector faults and loss of connection with the hub. Built-in buzzer for alarms, opening doors and entry/exit delays |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 5,550 ft (about 1,690 m) in open space, up to 20 mW |
| Sabotage protection | Auto-lock after more than 3 wrong codes or unverified devices in 1 minute (lock time set in the Ajax app), tamper alarm, holding screw on the SmartBracket, device authentication |
| Communication loss detection | After 36 s |
| Battery | 2 x CR123A, pre-installed, 3,200 mAh. Up to 2 years |
| Power consumption | Quiescent 115 uA, maximum 125 mA (3 V nominal) |
| Optional external power | 10.5 to 14 V DC, up to 1 A. The batteries act as backup |

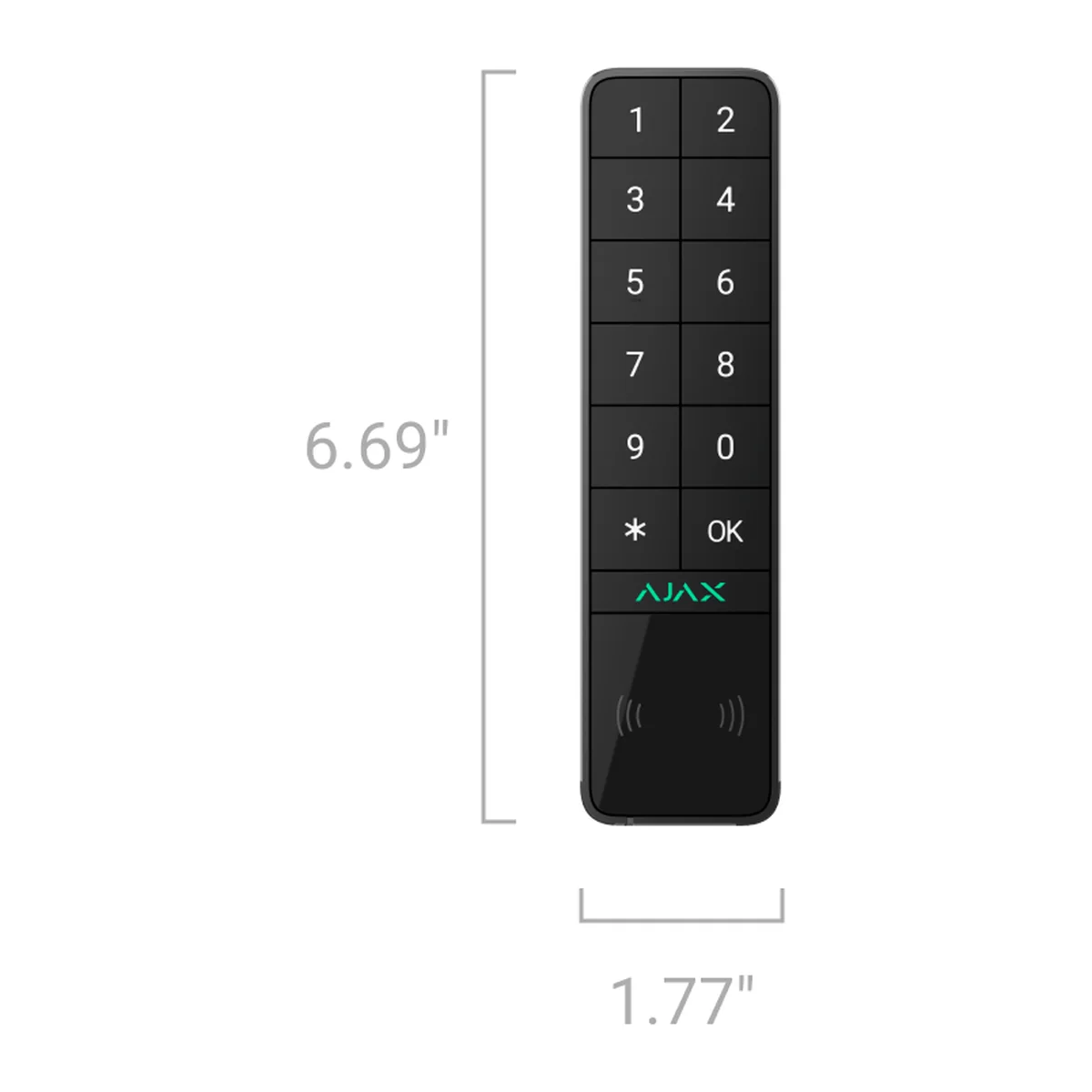

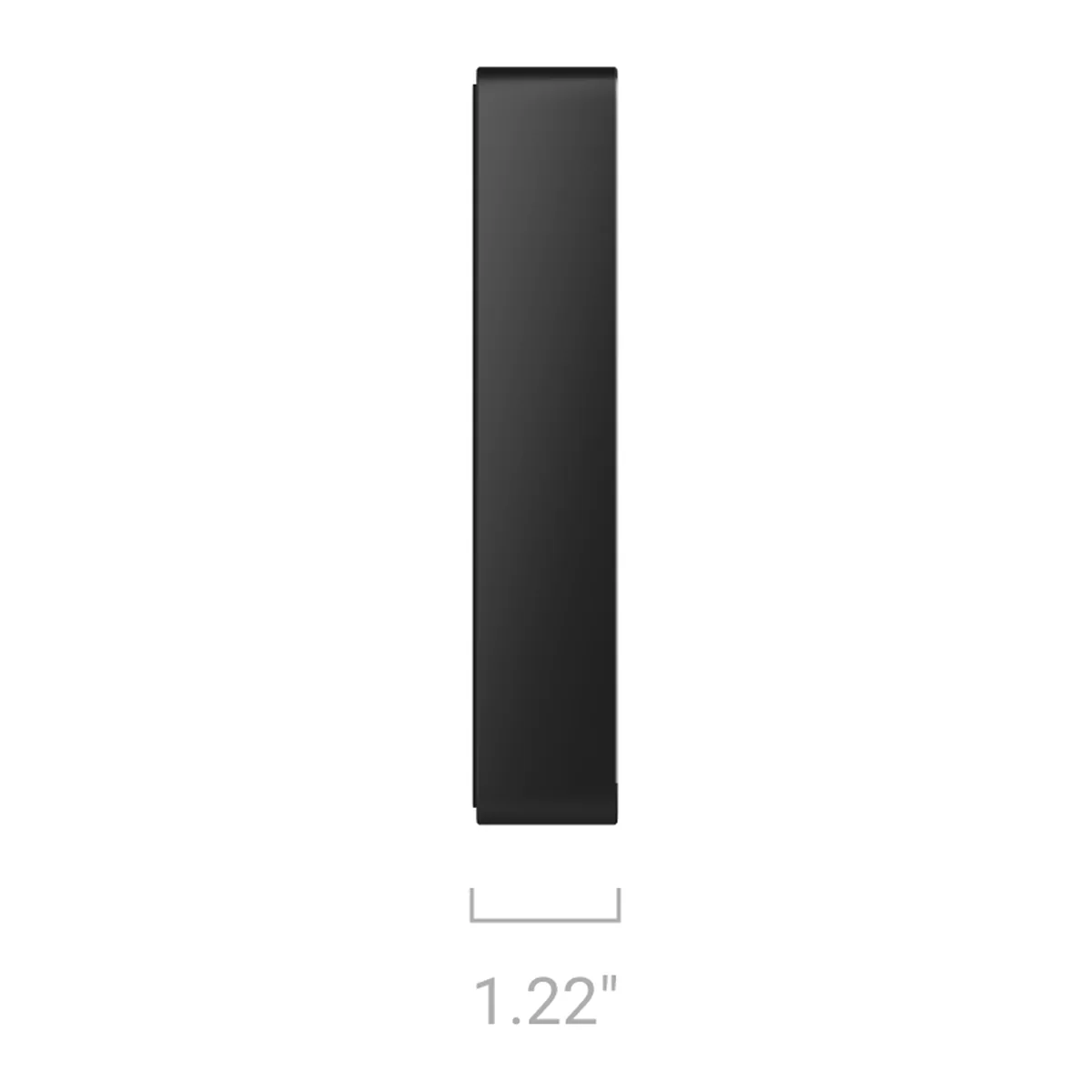

| Dimensions | 6.69 x 1.77 x 1.22 in (about 170 x 45 x 31 mm) |
| Weight | 9.1 oz (about 258 g) |
| Operating temperature | -13 to 140 degrees F (about -25 to 60 degrees C) |
| Operating humidity | Up to 80% |
| Protection class | IP66, IK08 |
| Colour | White. Also available in black and graphite |
| Complete set | KeyPad Outdoor Jeweller, 2 x CR123A batteries (pre-installed), SmartBracket mounting panel, installation template, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
-
AJAX Pass Contactless Access Card Black
Price on request
-
AJAX Tag Contactless Key Fob Black
Price on request
-
AJAX Hub 2 (4G) White - Wireless Security Control Panel with Photo Verification
Price on request
-
AJAX Hub 2 Plus Jeweller White - Control Panel with 200 Devices, Wi-Fi and Photo Verification
Price on request
Similar products
-
AJAX KeyPad Plus Jeweller White - Wireless Touch Keypad with Card and Fob Access
Price on request
-
AJAX KeyPad TouchScreen Jeweller Black - Wireless Touchscreen Keypad
Price on request
-
AJAX SpaceControl Wireless Key Fob Black
Price on request
-
Akuvox A01 Access Control Terminal
$303.00
-
Akuvox A02 Access Control Terminal
$347.00
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Yes. It is rated IP66 and IK08 and works from -13 to 140 degrees F (about -25 to 60 degrees C) at up to 80% humidity.
With an access code, a Pass card, a Tag key fob, or an Ajax app on a phone with Bluetooth (Android and iOS, BLE 4.2 or later). Arming without a code can also be allowed.
Yes. Two-factor confirmation makes users present a card, fob or phone and then enter a passcode.
The keypad locks after more than 3 wrong codes or unverified devices in 1 minute. The lock time is set in the Ajax app.
Yes. The function button can send a panic alarm to the monitoring station and users and sound the sirens, or mute interconnected fire alarms.
By 2 CR123A batteries that come fitted and last up to 2 years, or from an external 10.5 to 14 V DC supply with the batteries as backup.
Ajax Pass cards and Tag key fobs (DESFire EV1, EV2, EV3).
An Ajax hub, such as Hub 2 (4G) or Hub 2 Plus, which it connects to by Ajax Jeweller radio. It is set up in the Ajax apps. Ask us to check that your hub supports it.
The keypad, 2 CR123A batteries (already fitted), a SmartBracket mounting panel, an installation template, an installation kit and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
