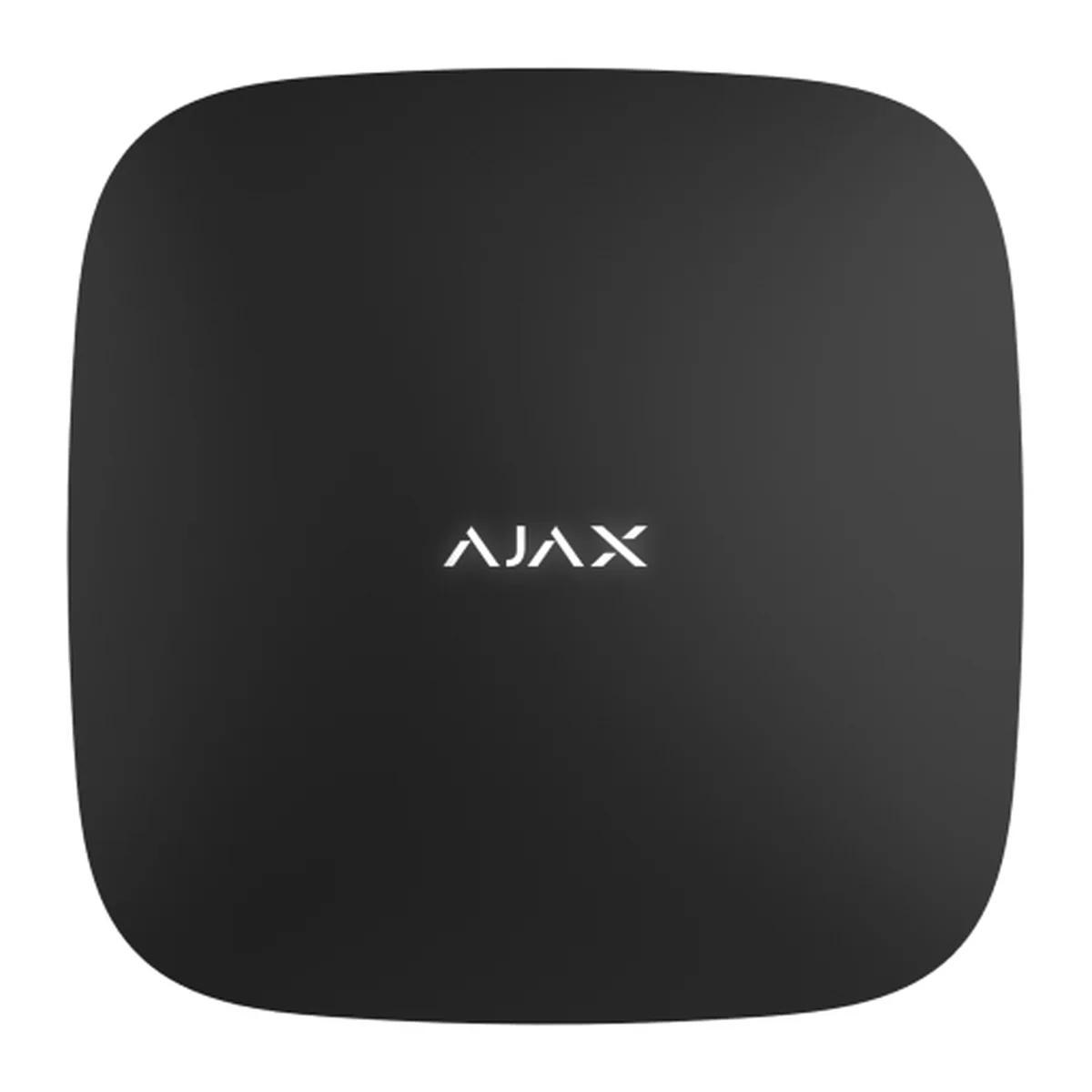

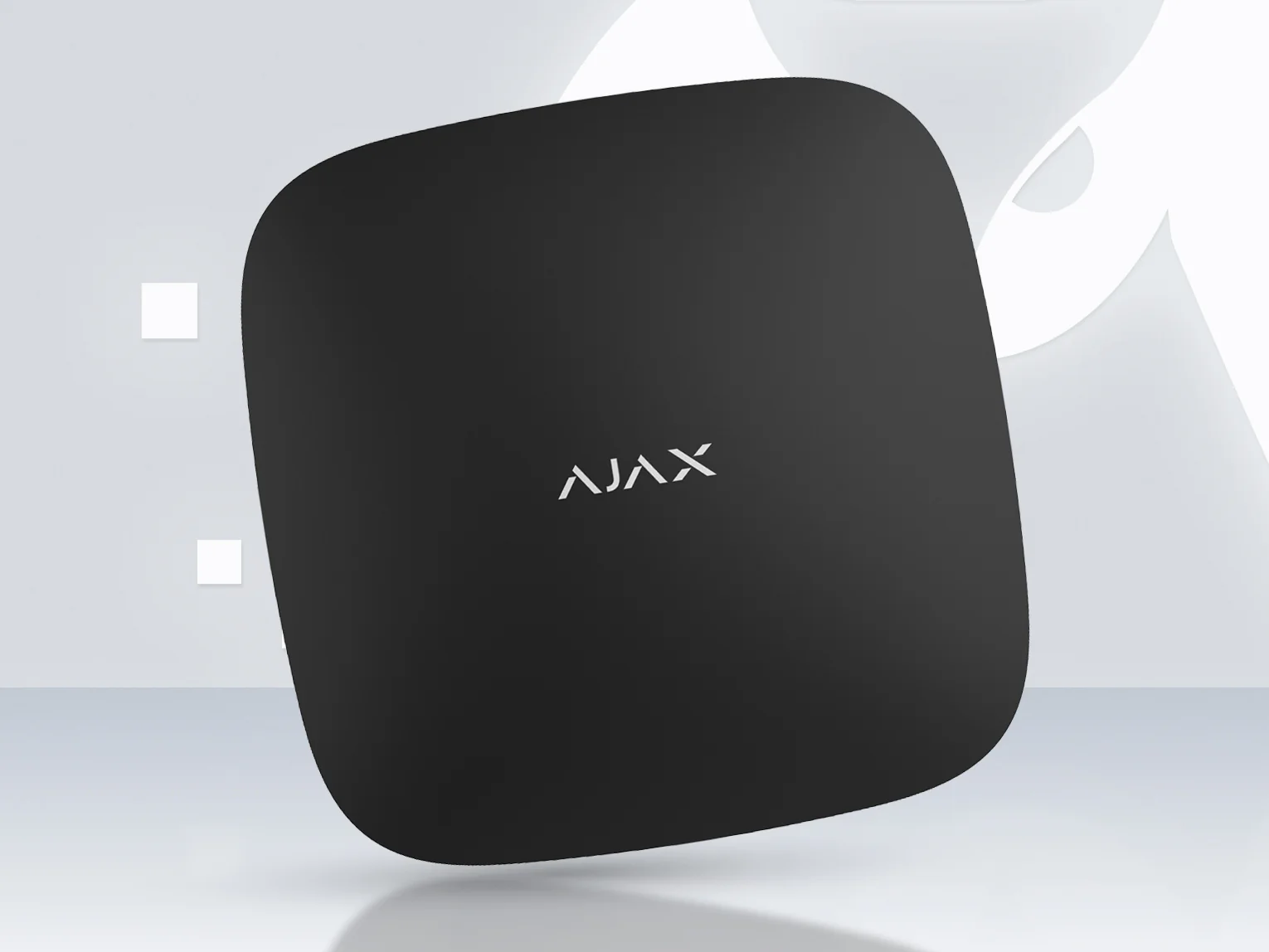

AJAX Hub 2 (4G) Black - Wireless Security Control Panel with Photo Verification
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX Hub 2 (4G) Jeweller |
| Type | Wireless control panel with photo verification support, connectable via Ethernet and two SIM cards (2G/3G/LTE) |
| Wireless Ajax devices | Up to 100, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders |
| IP cameras or DVRs | Up to 25. Integration with Dahua, Hikvision, Safire, EZVIZ and Uniview IP cameras and DVRs, RTSP support |
| Users | Up to 50 |
| Automation scenarios | Up to 32 |
| Security groups | Up to 9 |
| Rooms | Up to 50 |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 6,500 ft (about 2,000 m) in open space, up to 20 mW. Polling interval 12 to 300 s |
| Wings radio (photos) | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 5,500 ft (about 1,700 m) in open space |
| Radio frequency band | Depends on the sales region |
| Ethernet | 1 socket, up to 100 Mbps |
| Cellular | 2 micro-SIM slots, 2G/3G/4G (LTE) |
| Cellular bands | 2G: GSM900/DCS1800 (B3/B8). 3G: WCDMA 850/900/2100 (B1/B5/B8). 4G (LTE): FDD B1/B3/B5/B7/B8/B20 |
| Channel switching | Instant between Ethernet and SIM, and between 4G, 3G and 2G on one SIM. Up to 4 minutes between SIMs |
| Channel priority | Ethernet, then cellular. Channels work in parallel |
| Notifications | Push, SMS and calls, set for each user. Alarms, malfunctions, security mode changes, system events, non-security alerts, automation events |
| Photo verification | Photo by alarm, by scenario, on demand and by schedule (OS Malevich 2.19 or later). Delivery up to 9 s, up to 640 x 480 px, series of 1 to 5 photos |
| Monitoring protocols | SIA (DC-09), SurGard (Contact ID), ADEMCO 685, other proprietary protocols |
| Mains power | 110 to 240 V AC, 50/60 Hz, up to 10 W |
| Backup battery | Built-in Li-ion polymer, 3.7 V, 3 Ah. Up to 15 hours when running on SIM only |
| Alternative power | 6 V DC with the 6V PSU (type A) or 12 to 24 V DC with the 12-24V PSU (type A), sold separately |
| Sabotage protection | Tamper alarm if detached from the surface or the mounting panel. Device authentication against spoofing. Frequency hopping, with jamming and connection-loss notifications |

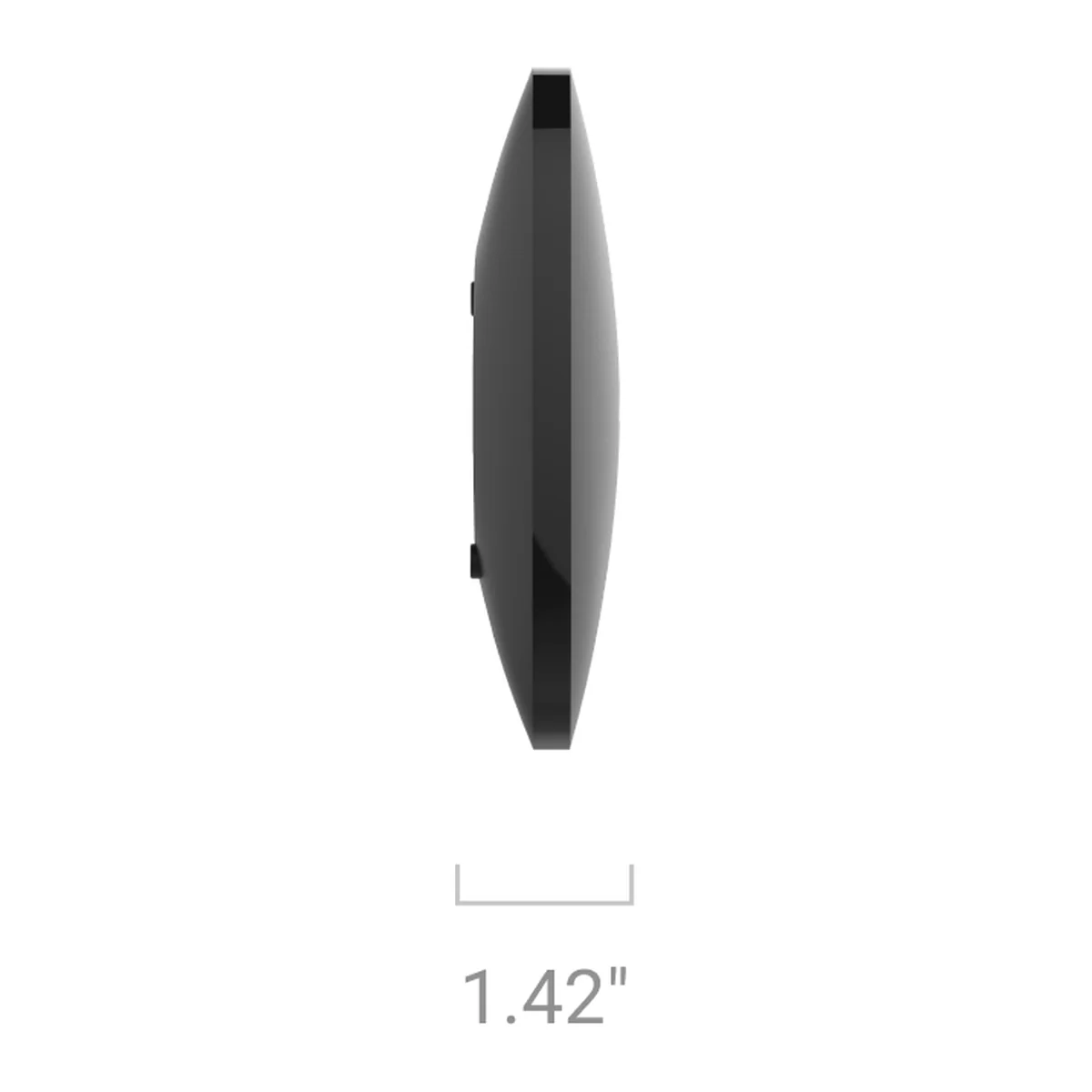

| Dimensions | 6.42 x 6.42 x 1.42 in (about 163 x 163 x 36 mm) |
| Weight | 12.77 oz (about 362 g) |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 93% (ULC) |
| Protection class | IP20, indoor use only |
| Colour | Black. Also available in white |
| Complete set | Hub 2 (4G) Jeweller, SmartBracket mounting panel, power cable, Ethernet cable, installation kit, SIM card (depends on the sales region), user manual |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX Hub 2 Plus Jeweller Black - Control Panel with 200 Devices, Wi-Fi and Photo Verification
Price on request
-
AJAX Hub BP Jeweller Black - Battery-Powered Control Panel for Off-Grid Security
Price on request
-
AJAX 12V Wireless Dry Contact Relay
Price on request
-
AJAX Button Black - Wireless Panic Button
Price on request
-
AJAX CombiProtect Jeweller - Motion & Glass Break Detector (White)
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Up to 100 wireless Ajax devices, including up to 10 sirens or keypads with a built-in siren and up to 5 range extenders, with up to 50 users and 32 automation scenarios.
Over Ethernet and two SIM cards (2G/3G/LTE). The channels work in parallel and it switches between Ethernet and SIM instantly if one drops (up to 4 minutes between SIMs).
The built-in 3 Ah battery takes over. Ajax calculates up to 15 hours when the hub runs on a SIM card only. A 6 V or 12 to 24 V alternative power supply can also be fitted (sold separately).
Ajax MotionCam detectors take photos when an alarm is triggered, on demand, by scenario or on a schedule. The hub delivers them in about 9 seconds, so you or the monitoring company can see what happened.
Yes. It supports SIA (DC-09), SurGard (Contact ID) and ADEMCO 685, so it can report to a monitoring centre, including photo verification and panic button coordinates.
It can add up to 25 IP cameras or DVRs, with integration for Dahua, Hikvision, Safire, EZVIZ and Uniview, plus RTSP support. Ask us to check your model.
It takes two micro-SIM cards and supports the LTE bands listed in the specifications. We check the SIM and signal at your property before installing.
No. The hub is for indoor installation only (IP20). Detectors and sirens rated for outdoor use go outside and talk to the hub by radio.
The hub, a SmartBracket mounting panel, a power cable, an Ethernet cable, an installation kit, a SIM card (depends on the sales region) and a user manual.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
