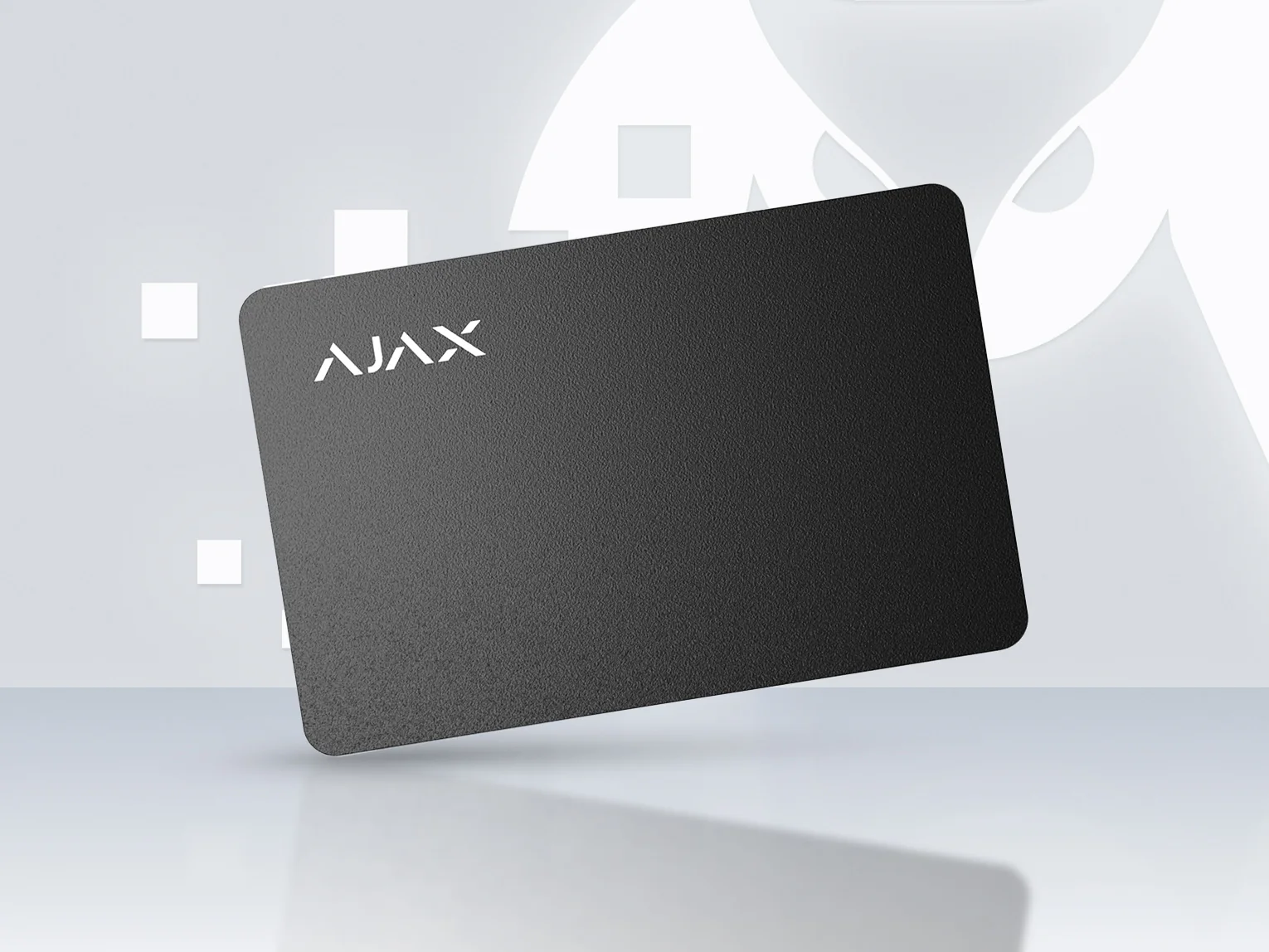

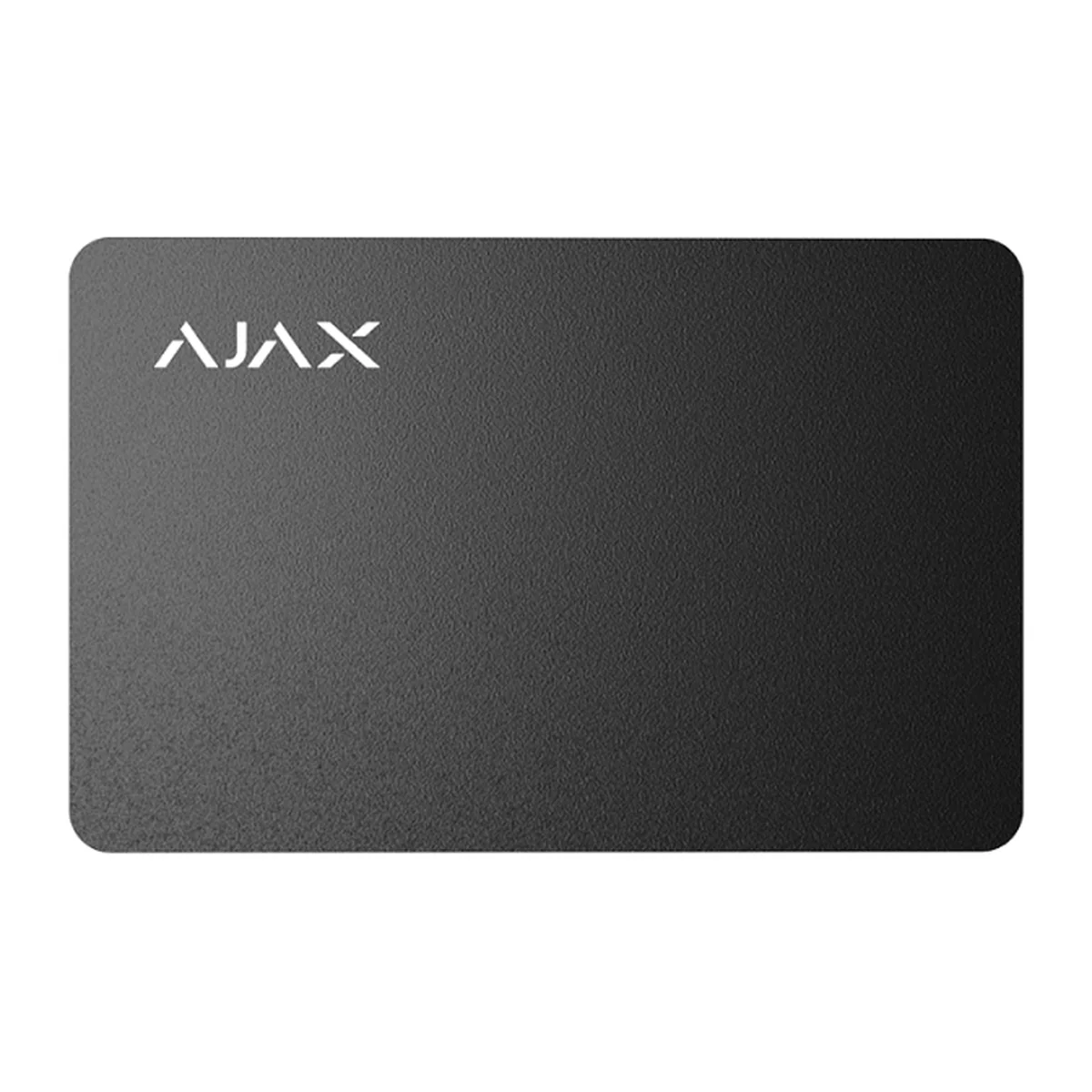

AJAX Pass Contactless Access Card Black
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX Pass |
| Type | Contactless card for security control |
| Works with | KeyPad Plus Jeweller, KeyPad TouchScreen Jeweller, Superior KeyPad TouchScreen Fibra and Superior KeyPad Plus Jeweller, as listed on the Ajax specification page. Ajax also lists Pass and Tag for KeyPad Outdoor Jeweller |
| Technology | DESFire, ISO 14443-A (13.56 MHz) |
| Encryption | Triple DES and AES hardware encryption with a 128-bit key |
| User assignment | Set the name and access permissions for each card in the Ajax app |
| Hubs | One Pass can be paired with up to 13 Ajax hubs |
| Sabotage protection | Authentication and protection from signal interception |

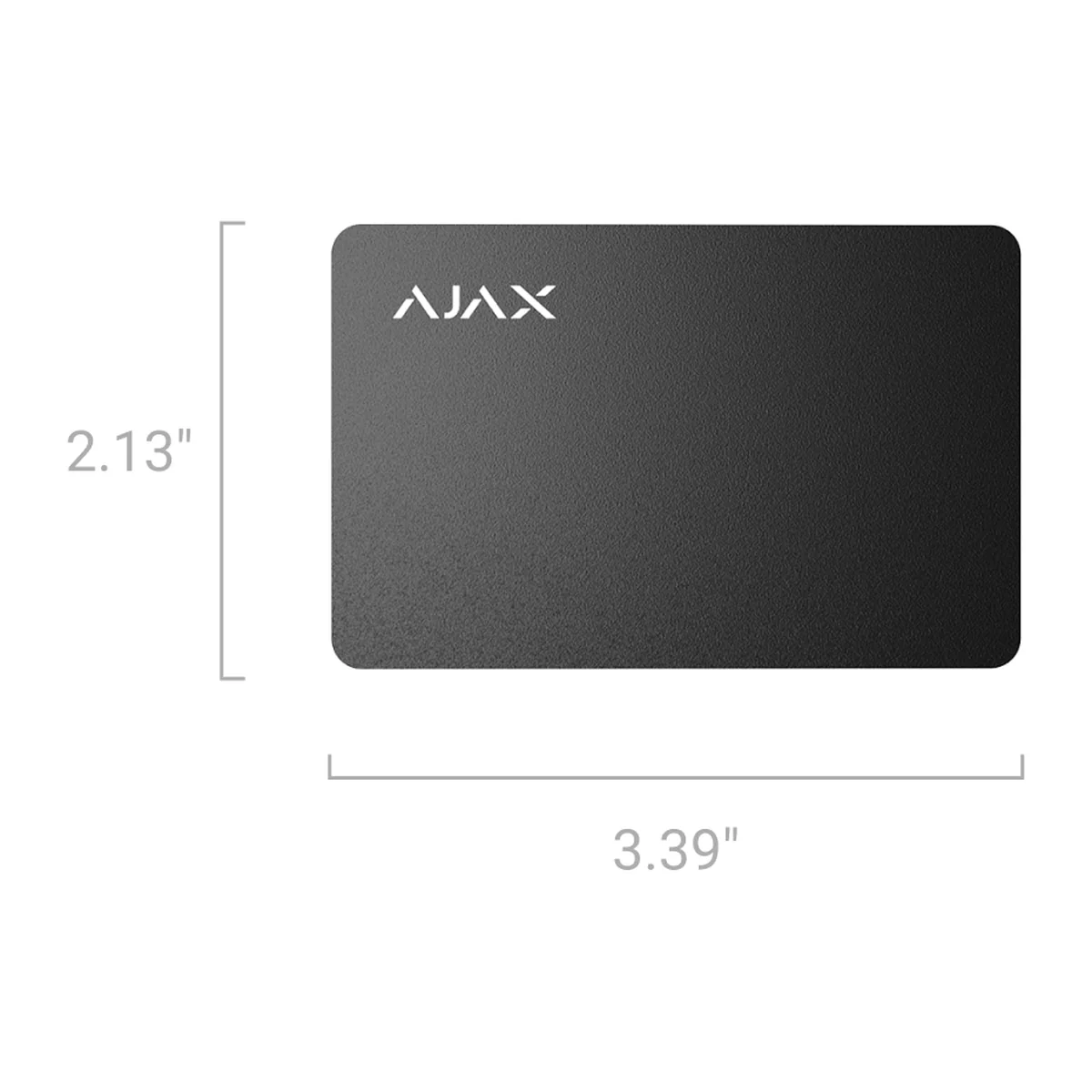

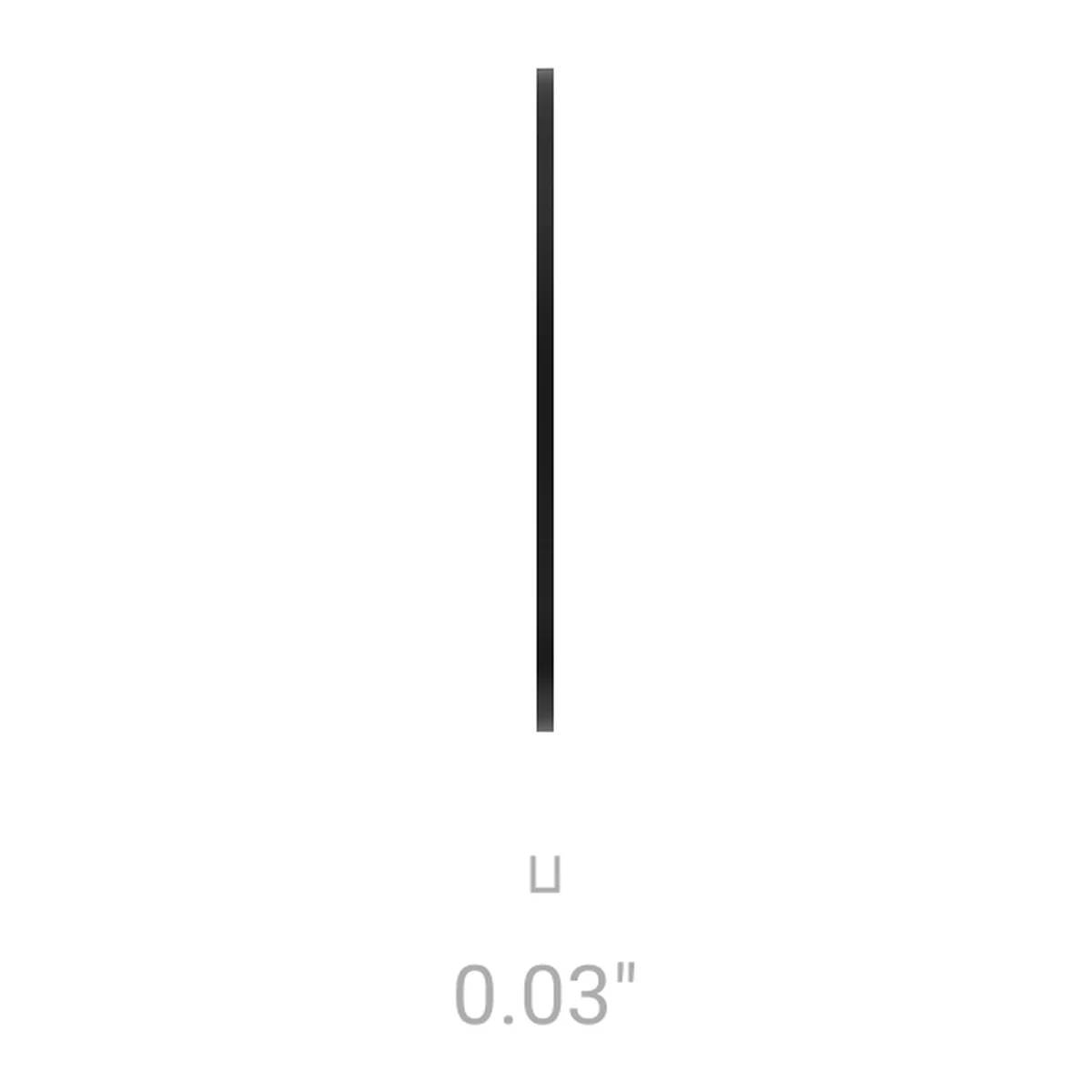

| Dimensions | 3.39 x 2.13 x 0.03 in (about 86 x 54 x 0.8 mm) |
| Weight | 0.2 oz (about 6 g) |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 75% |
| Colour | Black. Also available in white |
| Packs | Ajax supplies Pass in packs of 3, 10 or 100, with a quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems, access devices
- Technical specifications Web page · ajax.systems · Ajax Systems
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
It lets a user arm and disarm the Ajax system by holding the card to a compatible keypad, without typing a code or opening the app.
KeyPad Plus Jeweller, KeyPad TouchScreen Jeweller, Superior KeyPad TouchScreen Fibra and Superior KeyPad Plus Jeweller, as listed on the Ajax specification page. Ajax also lists Pass and Tag for KeyPad Outdoor Jeweller.
Each card is assigned to a user with their own access permissions in the Ajax app, and a lost one can be removed from the system there.
It uses DESFire with Triple DES and 128-bit AES hardware encryption, plus authentication and protection from signal interception.
No.
Yes. It can be paired with up to 13 Ajax hubs.
Ajax sells Pass in packs of 3, 10 or 100. Ask us which pack we are quoting, or how many you need.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
