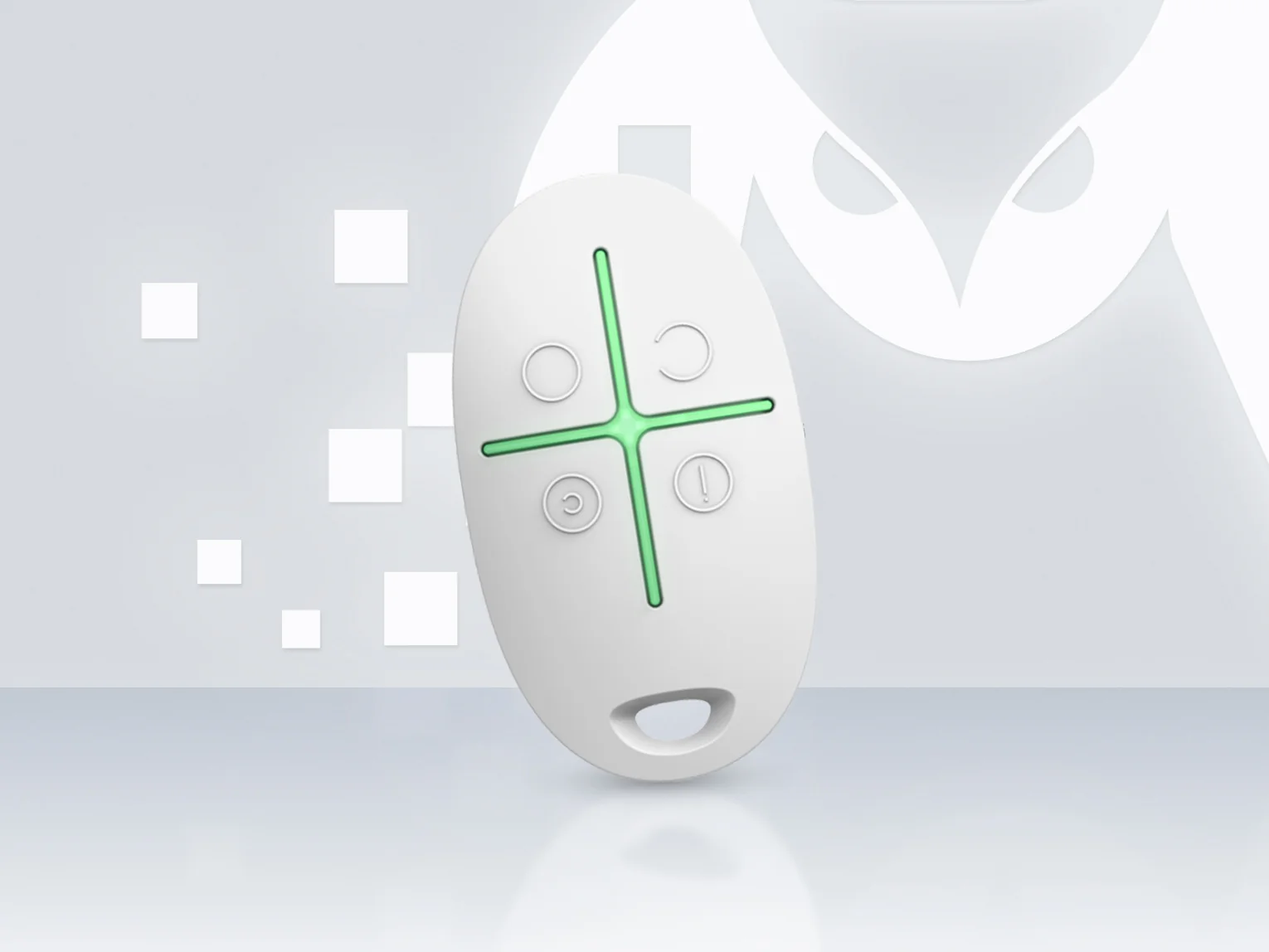

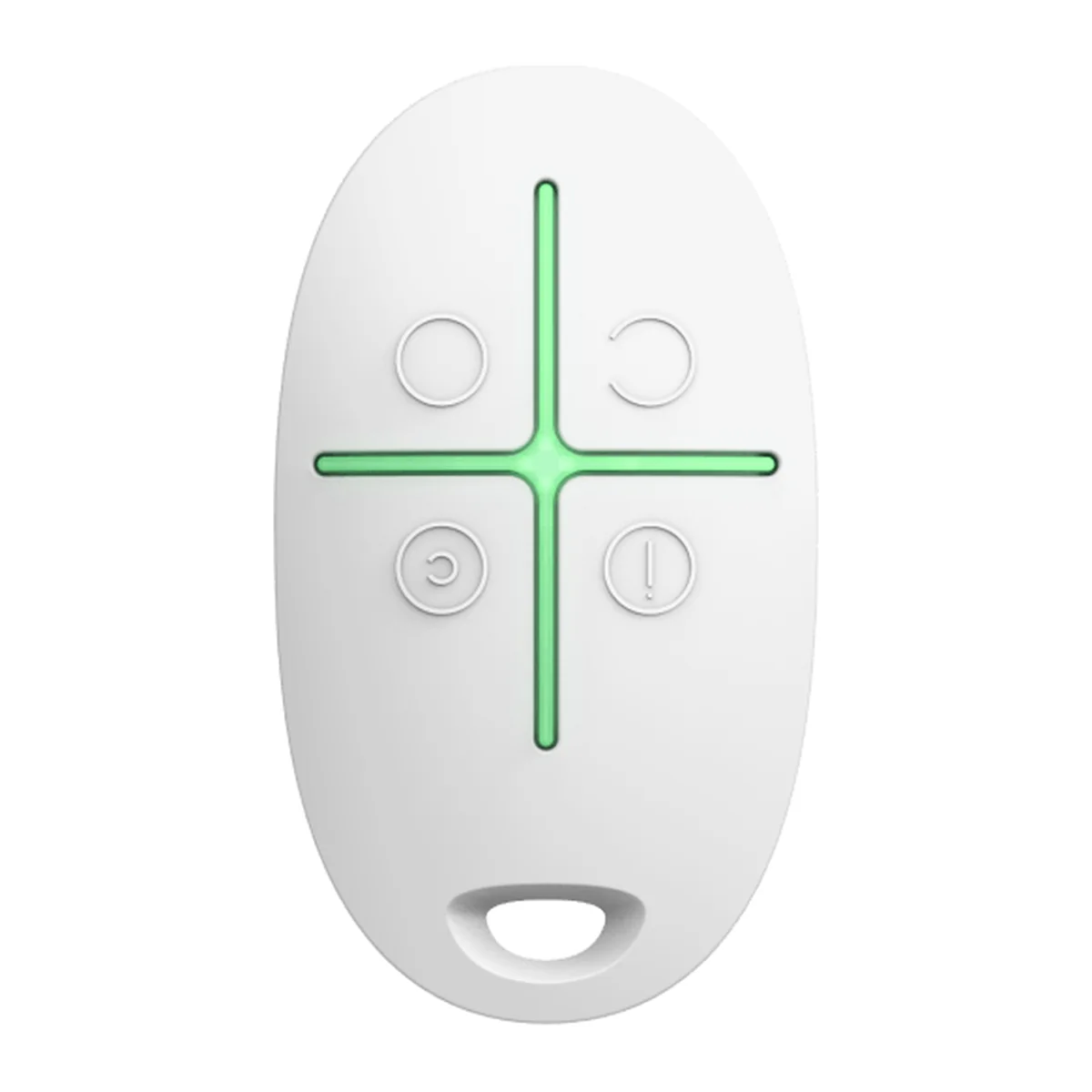

AJAX SpaceControl Wireless Key Fob White
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX SpaceControl Jeweller |
| Type | Wireless key fob with a panic button and security mode control |
| Buttons | 4: arm, disarm, Night mode and panic |
| Group management | The user can choose which security group the key fob controls |
| User assignment | Events appear in the Ajax apps under the user name, with the same rights as that user |
| Accidental press protection | Long press or double press (firmware 5.54.1.0 or later, key fobs made from 19 March 2020) |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 1,000 ft (about 300 m) in open space, up to 20 mW |
| Battery | 1 x CR2032, pre-installed, 225 mAh. Up to 5 years |
| Power consumption | Quiescent 0.7 uA, maximum 26 mA (3 V nominal) |

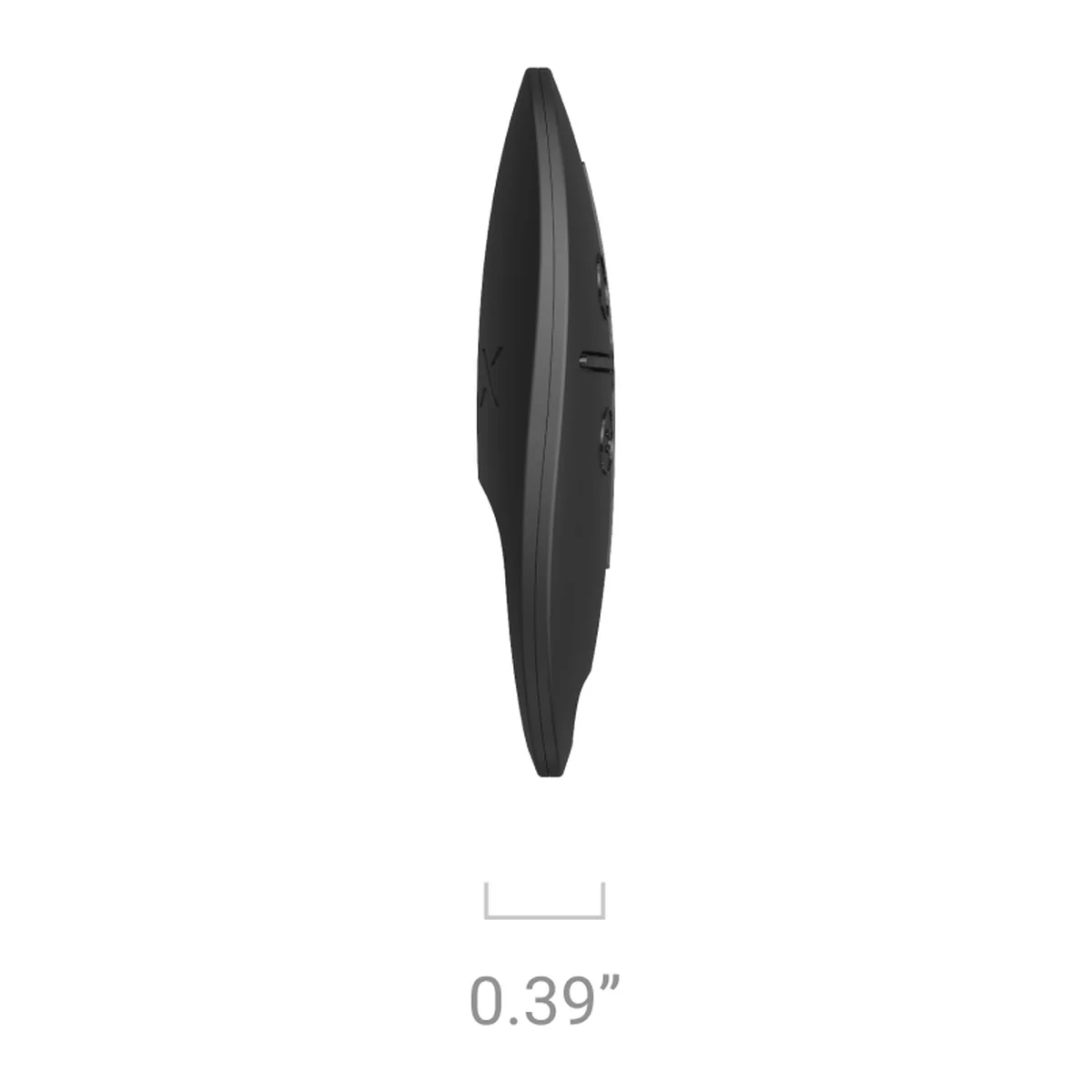

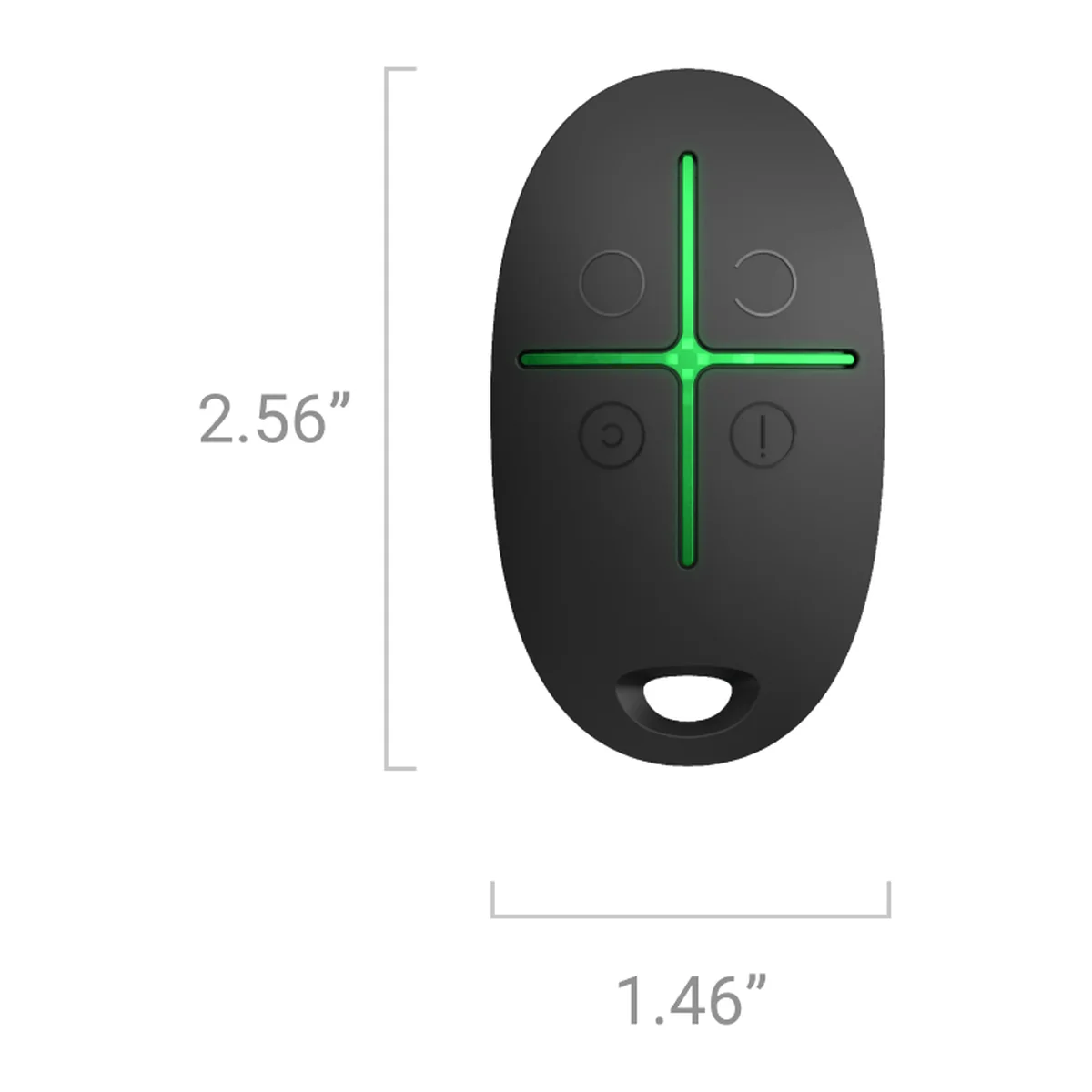

| Dimensions | 2.56 x 1.46 x 0.39 in (about 65 x 37 x 10 mm) |
| Weight | 0.46 oz (about 13 g) for the white version, 0.44 oz (about 12.5 g) for the black version |
| Operating temperature | -13 to 122 degrees F (about -25 to 50 degrees C) |
| Operating humidity | Up to 95% |
| Protection class | IP50, IK04 |
| Colour | White. Also available in black |
| Complete set | SpaceControl Jeweller, CR2032 battery (pre-installed), quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX KeyPad Outdoor Jeweller White
Price on request
-
AJAX KeyPad Plus Jeweller White - Wireless Touch Keypad with Card and Fob Access
Price on request
-
AJAX KeyPad TouchScreen Jeweller Black - Wireless Touchscreen Keypad
Price on request
-
AJAX Pass Contactless Access Card Black
Price on request
-
AJAX Tag Contactless Key Fob Black
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
One button each to arm, disarm and switch to Night mode, plus a panic button.
Key fobs with firmware 5.54.1.0 or later (made from 19 March 2020) can require a long press or a double press, which protects against accidental presses.
Yes. The user can choose which security group the key fob controls.
Each key fob is assigned to a user, so its events appear in the Ajax apps under that user name.
Up to 5 years on the fitted CR2032 battery.
Up to 1,000 ft (about 300 m) in open space. Walls and floors reduce the range.
An Ajax hub, such as Hub 2 (4G) or Hub 2 Plus, which it connects to by Ajax Jeweller radio. It is set up in the Ajax apps. Ask us to check that your hub supports it.
The key fob, a CR2032 battery (already fitted) and a quick start guide.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
