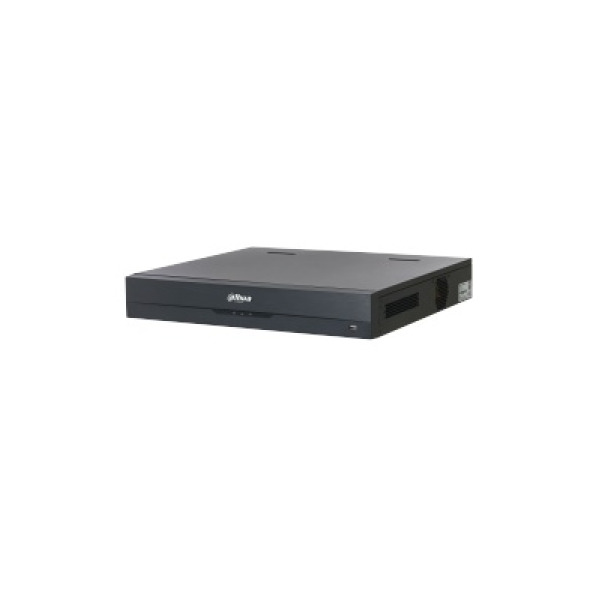

Dahua DHI-NVR5432-AI/ANZ-S2 32CH WizSense AcuPick NVR with 8K Output
The Dahua DHI-NVR5432-AI/ANZ-S2 is a 32-channel 1.5U WizSense network video recorder without built-in PoE, designed for sites using a separate PoE switch or existing network cabling. It supports IP cameras up to 32MP, with 448Mbps of bandwidth when AI is disabled or 200Mbps when enabled.
AcuPick AI search runs on 4 recorder-side channels, with 8-channel perimeter protection, 16-channel SMD Plus, and 4-channel face detection all processed onboard. Four SATA bays support drives up to 20TB each, and two HDMI outputs support up to 7680 x 4320. Supplied without HDDs. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | DHI-NVR5432-AI/ANZ-S2 |
| Channel Count | 32 IP camera channels |
| Chassis | 1.5U, no built-in PoE |
| Camera Resolution Support | Up to 32MP |
| Network Bandwidth | AI disabled: 448Mbps in/rec/out; AI enabled: 200Mbps in/rec/out |
| Decoding Capability | AI disabled: up to 10x8MP/20x4MP/32x1080p@30fps; AI enabled: up to 8x8MP/16x4MP/32x1080p@30fps |
| AcuPick (Recorder) | 4 channels |
| Perimeter Protection | Up to 8 recorder-side channels, 10 IVS rules each |
| SMD Plus | Up to 16 recorder-side channels |
| Face Detection | 4 recorder-side channels, up to 20 databases, 30,000 images |
| Video Metadata | 4 recorder-side channels, 22 attributes |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| HDD Bays | 4 SATA, up to 20TB per disk |
| External Storage | 1 eSATA, iSCSI, disk groups |
| Video Output | 2 HDMI (up to 7680x4320), 2 VGA (up to 1920x1080) |
| Display Layouts | Main screen up to 36 windows; sub screen up to 16 |
| Playback | Up to 16-channel playback |
| Network | 2x 10/100/1000Mbps Gigabit Ethernet |
| Audio/Alarm | 1 RCA audio in, 2 RCA audio out, 16 alarm inputs, 6 alarm outputs |
| Power Consumption | Up to 13W without HDDs |
| Dimensions | 440.0mm x 415.6mm x 76.0mm |
| Net Weight | 4.27kg |
| Operating Temperature | -10°C to +55°C |
| HDD Included | No, sold separately |
| Warranty | 3 years |
Similar products
-
Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP WizSense Network Video Recorder
$326.00
-
Dahua DHI-NVR5208-8P-AI/ANZ-S2 8CH WizSense AcuPick PoE NVR
$671.00
-
AJAX 12V PSU for NVR
Price on request
-
AJAX 8CH White HDMI NVR without HDD - 8-Channel Network Video Recorder
Price on request
-
AJAX NVR 16CH White - 16-Channel Network Video Recorder (No HDD)
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
No, it has no built-in PoE ports, so it needs a separate PoE switch or existing network infrastructure to power and connect cameras.
No, it's supplied without HDDs. It has 4 SATA bays supporting drives up to 20TB each; Sipko Security can advise on and supply the right storage.
AcuPick is Dahua's AI search tool for quickly finding people or vehicles in recorded footage. This model supports 4 recorder-side AcuPick channels.
Yes, 2 HDMI outputs (up to 8K resolution) and 2 VGA outputs allow separate local monitoring layouts.
If your site already has managed PoE switches or structured cabling installed, this non-PoE NVR avoids paying for PoE ports you won't use.
This product includes 3 years warranty plus SIPKO support, with installation, commissioning and ongoing service options available for Melbourne customers.
32-Channel Recording Without Built-in PoE
The Dahua DHI-NVR5432-AI/ANZ-S2 gives you 32-channel WizSense recording and AcuPick search for sites that already have PoE switches or structured cabling in place.
