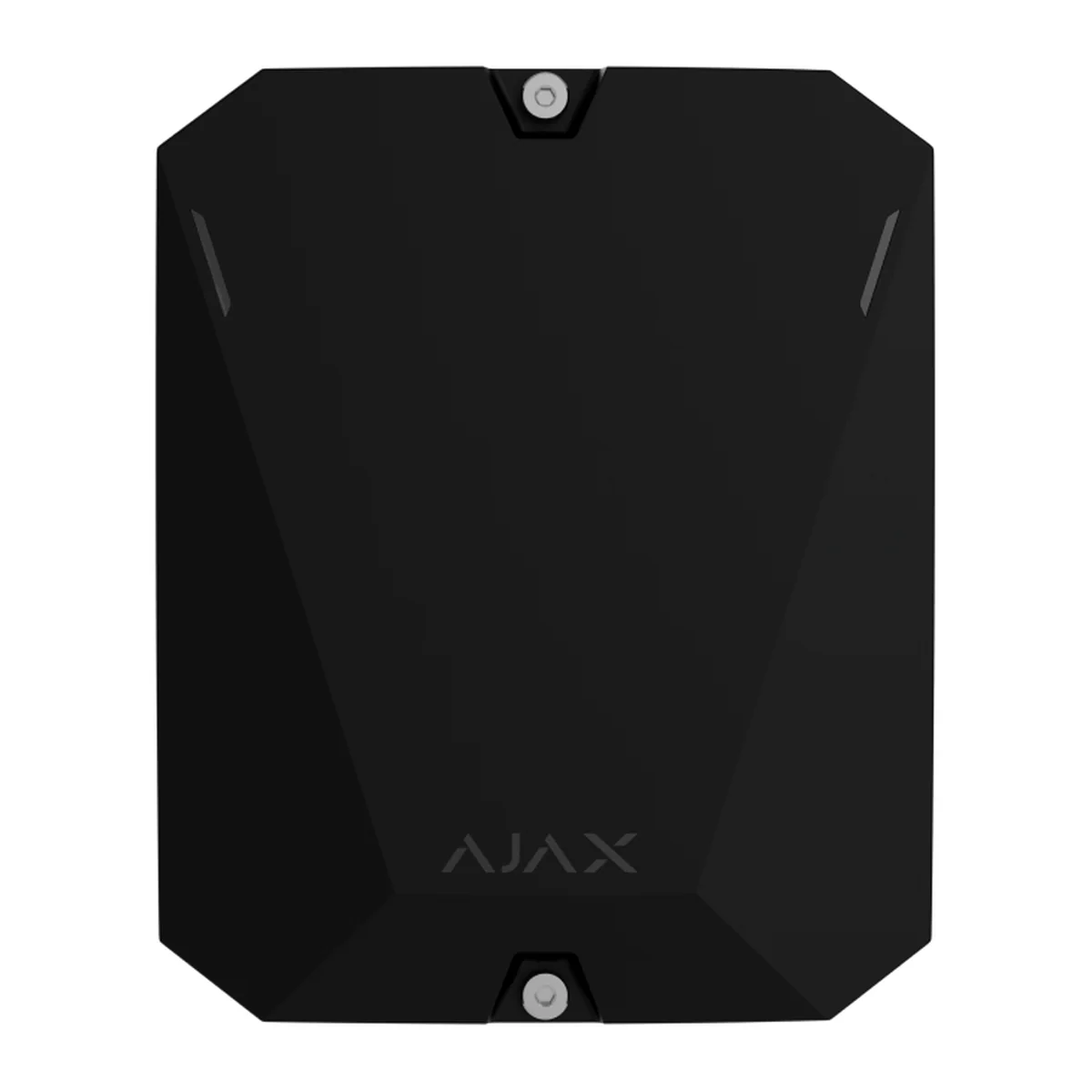

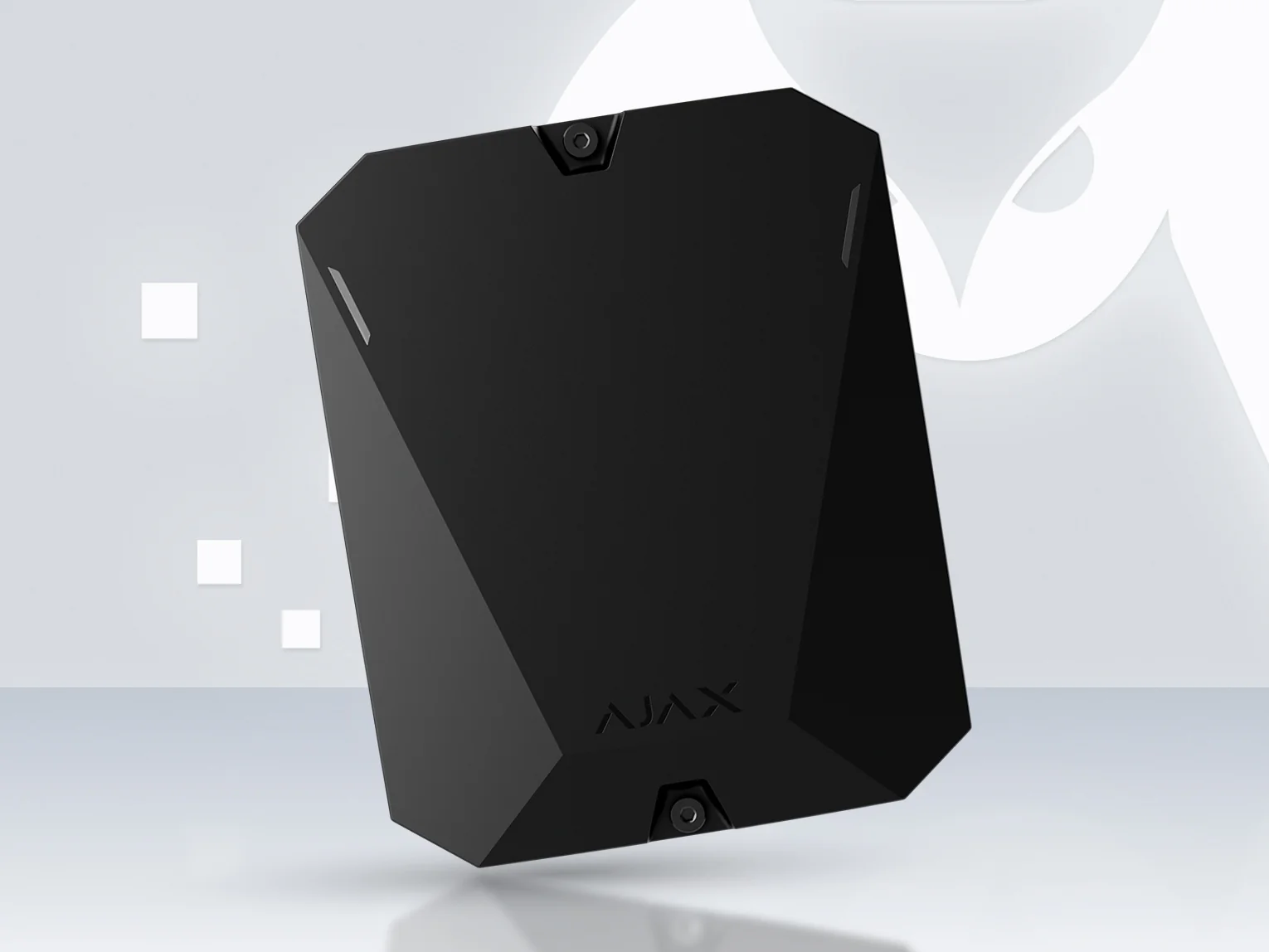

AJAX Hub BP Jeweller Black - Battery-Powered Control Panel for Off-Grid Security
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product name | AJAX Hub BP Jeweller |
| Type | Wireless battery-powered control panel with photo verification support, connectable via two SIM cards (2G/3G/LTE) |
| Ajax devices | Up to 100, including up to 5 range extenders, up to 10 sirens and up to 50 keypads with a built-in buzzer |
| Users | Up to 50 |
| Automation scenarios | Up to 32 |
| Security groups | Up to 9 |
| Rooms | Up to 50 |
| Event log | Up to 1,000 events, stored in non-volatile flash memory |
| Jeweller radio | Two-way, encrypted with a dynamic key, frequency hopping. Range up to 6,550 ft (about 2,000 m) in open space, up to 25 mW. Polling interval 12 to 300 s |
| Wings radio (photos) | Two-way, encrypted, with re-sending on errors and photo delivery check. Range up to 6,550 ft (about 2,000 m) in open space |

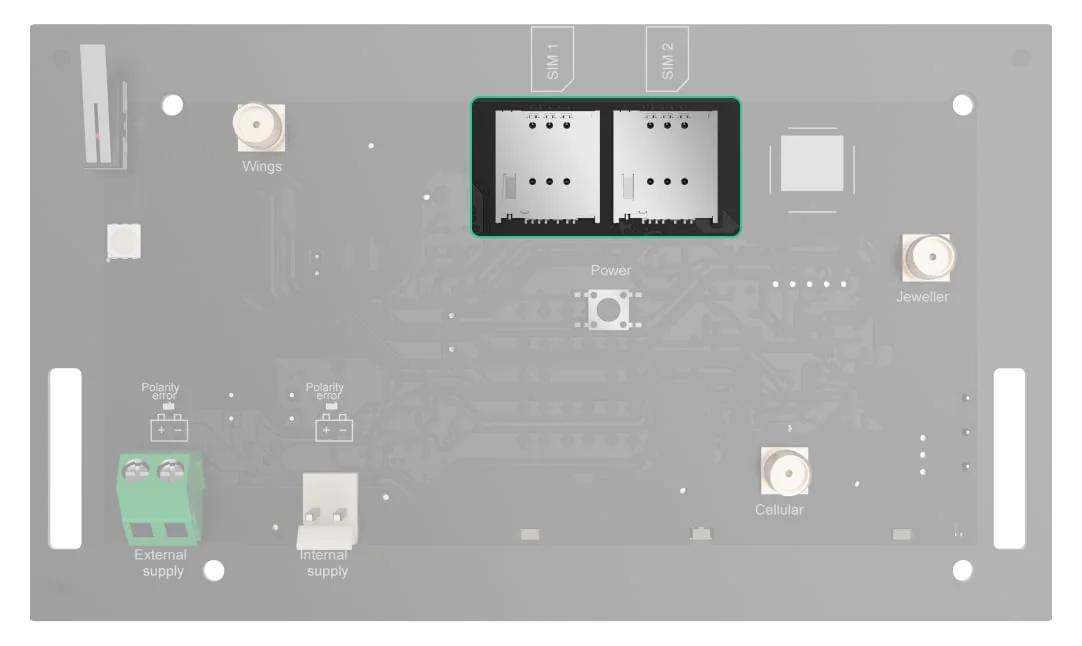

| Cellular | 2 micro-SIM slots. 2G: GSM900/DCS1800 (B3/B8). 3G: WCDMA 850/900/2100 (B1/B5/B8). 4G (LTE): FDD B1/B3/B5/B7/B8/B20 |
| Channel switching | Between SIM cards up to 4 minutes. Automatic APN selection |

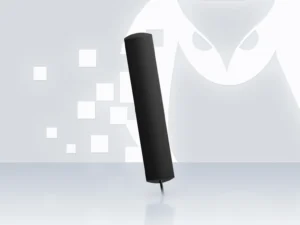

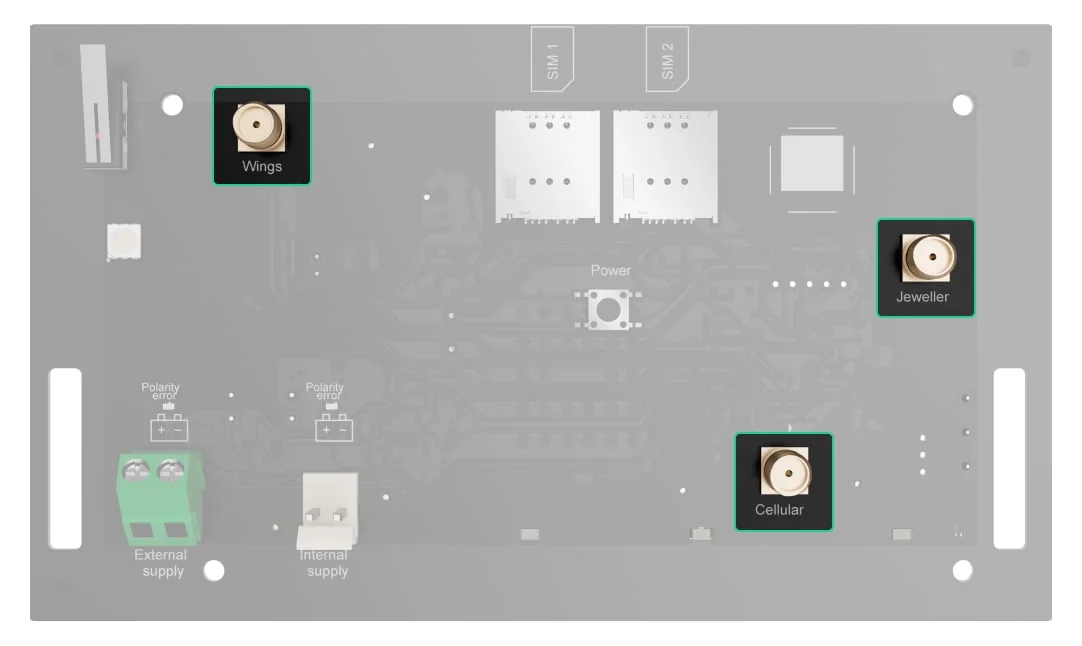

| External antenna connectors | Jeweller, Wings and 4G (LTE). ExternalAntenna sold separately |
| Alarm transmission | Category SP5, pass-through operation, signalling security S2, information security I2 |
| Notifications | Push, SMS and calls, set for each user. Can be set to schemes A to D under EN 50131 |
| Photo verification | By alarm, scenario, on demand, schedule (OS Malevich 2.19 or later), arming/disarming, anti-masking, tamper and magnetometer. Delivery up to 9 s, up to 960 x 720 px, 1 to 5 photos |
| Monitoring protocols | SIA DC-09 (SIA-DCS), SurGard (Contact ID), ADEMCO 685, other proprietary protocols |
| External power | 4.2 to 16 V DC, up to 2 A: zinc-air battery or external power source |
| Internal power | 4.2 to 16 V DC, up to 2 A: rechargeable lead-acid or LiFePO4, or non-rechargeable LTC batteries (not included) |
| Operating DC voltage | 3.5 to 16 V DC |
| Battery life, external battery | Up to 18 months in full function mode, more than 5 years in Battery saving mode, on a 12 V, 600 Ah non-rechargeable zinc-air battery (not included) |
| Battery life, internal battery (Battery saving mode) | Up to 23 months on a 7.2 V, 95 Ah LTC battery; up to 8 months on a 6.4 V, 36 Ah LiFePO4 battery; up to 2 months on a 12 V, 7 Ah lead-acid battery (not included) |
| Sabotage protection | Tamper alarm on opening the lid or detaching the casing, device authentication, frequency hopping, jamming alert within 30 s |

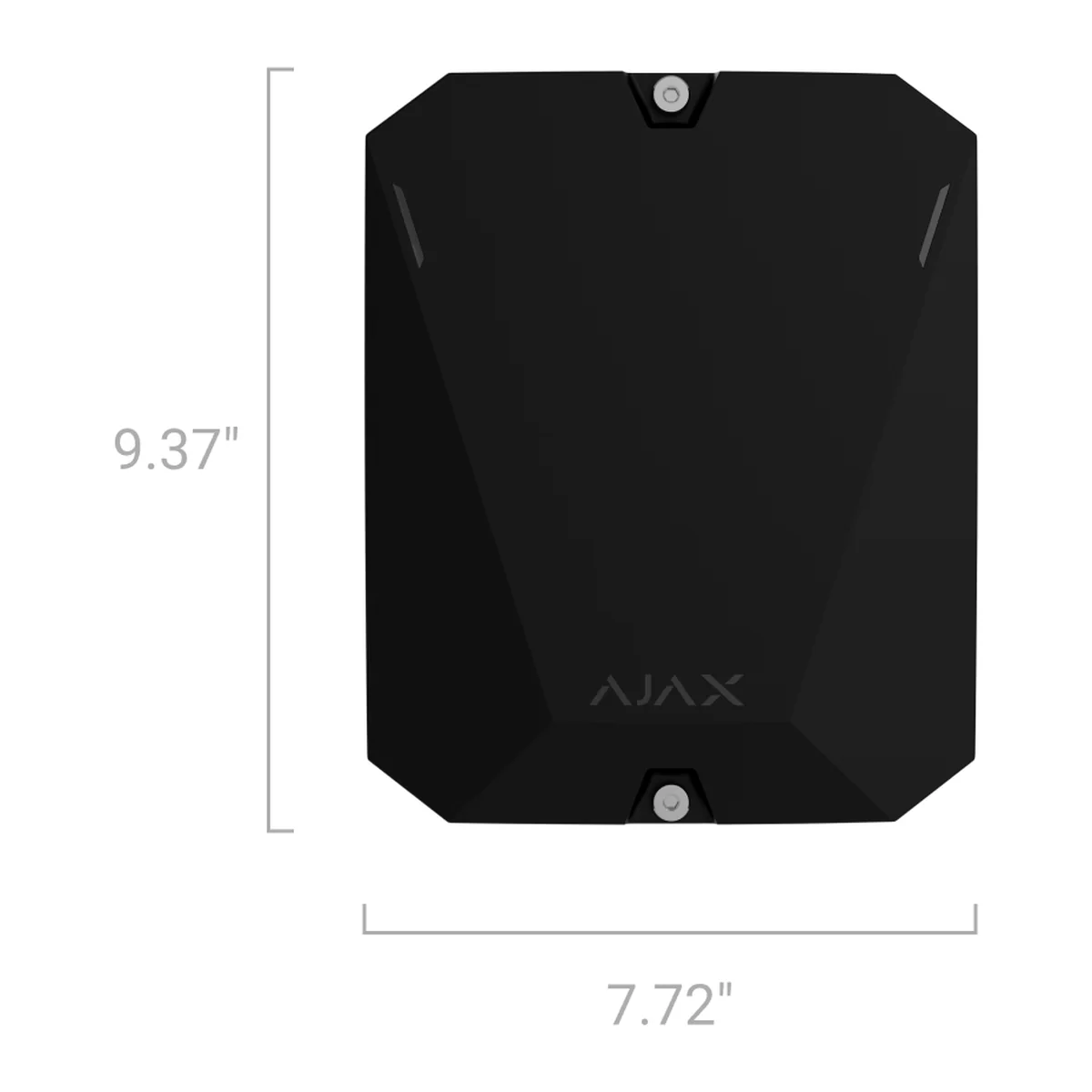

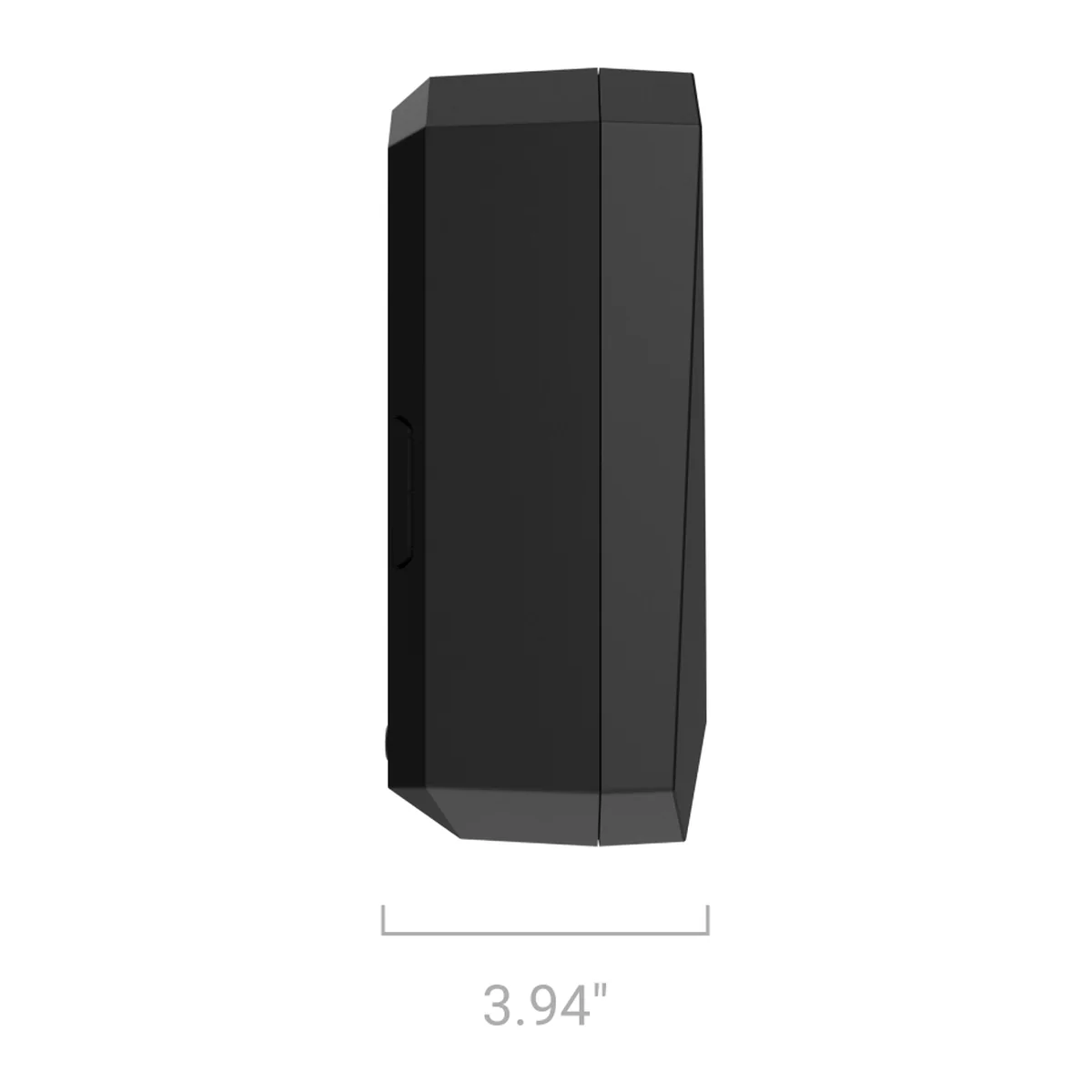

| Dimensions | 7.72 x 9.37 x 3.94 in (about 196 x 238 x 100 mm) |
| Weight | 2.23 lb (about 1.01 kg) |
| Operating temperature | 14 to 104 degrees F (about -10 to 40 degrees C) |
| Operating humidity | Up to 75% |
| Protection class | IP40, indoor use only |
| Colour | Black. Also available in white |
| Complete set | Hub BP Jeweller, casing, installation kit, quick start guide |
| Warranty | 24 months, as published by Ajax Systems |
Downloads
- Technical data sheet PDF · drive.google.com · Ajax Systems
- User manual Web page · ajax.systems · Ajax Systems
- Technical specifications Web page · ajax.systems · Ajax Systems
- EU Declaration of Conformity PDF · ajax.systems · Ajax Systems, PDF
Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.
Works with this product
Similar products
-
AJAX Hub 2 (4G) Black - Wireless Security Control Panel with Photo Verification
Price on request
-
AJAX Hub 2 Plus Jeweller Black - Control Panel with 200 Devices, Wi-Fi and Photo Verification
Price on request
-
AJAX 12-24V PSU for Hub 2/Hub 2 Plus/ReX 2
Price on request
-
AJAX 12V Wireless Dry Contact Relay
Price on request
-
AJAX 6V PSU for Hub 2/Hub 2 Plus/ReX 2
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Sites without mains power, such as farms, sheds, construction sites or holiday properties. It runs entirely on batteries and connects over the mobile network.
Ajax lists up to 18 months in full function mode and more than 5 years in Battery saving mode on an external 12 V, 600 Ah zinc-air battery. On internal batteries in Battery saving mode: up to 23 months (7.2 V, 95 Ah LTC), 8 months (6.4 V, 36 Ah LiFePO4) or 2 months (12 V, 7 Ah lead-acid). Batteries are not included.
Over two micro-SIM cards (2G/3G/LTE) with automatic APN selection. It has no Ethernet or Wi-Fi. External antennas can be connected where the signal is weak.
Up to 100 Ajax devices, including up to 10 sirens, 5 range extenders and 50 keypads with a buzzer, with up to 50 users.
Yes. Photos up to 960 x 720 px by alarm, on demand, by schedule, on arming or disarming, and on anti-masking, tamper or magnetometer events.
Yes. It supports SIA DC-09 (SIA-DCS), SurGard (Contact ID) and ADEMCO 685.
No. Ajax designs it for indoor installation (IP40). Install it inside a building or a weatherproof enclosure at the site.
The Hub BP Jeweller, its casing, an installation kit and a quick start guide. Batteries and antennas are sold separately.
In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.
Yes. We supply, install and program Ajax alarm systems across Melbourne and the Mornington Peninsula, and can connect them to a monitoring company. Request a quote and we will plan the detectors, sirens and keypads with you.
