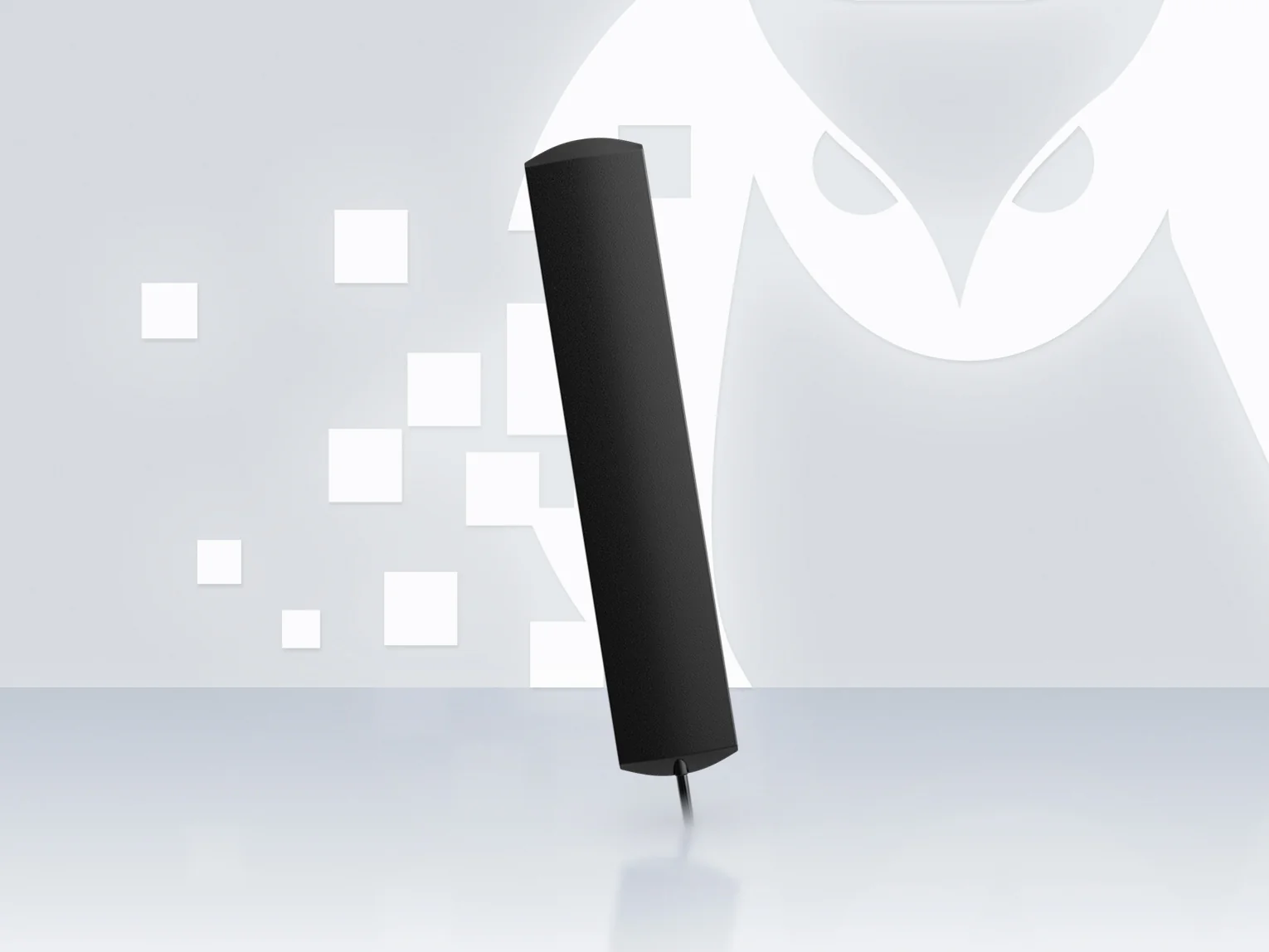

AJAX External Antenna - LTE & Radio Communication for Hub BP

SKU: AJAX-104117
In Stock
The AJAX ExternalAntenna is an external antenna for LTE and radio communication channels. It covers 2G, 3G and LTE as well as Jeweller and Wings, across 698 to 960 MHz and 1,710 to 2,690 MHz, with an SMA connector and a 3 m cable. The Ajax system can detect a break in the antenna and notify users and the monitoring company. It goes outside through the holes in the hub casing and sticks to a surface with pre-applied double-sided tape.
2G/3G/LTE, Jeweller, Wings SMA connector
Price on Request
Request a Quote
Call me back
Cellular and radio channels 2G/3G/LTE, Jeweller and Wings, over 698-960 MHz and 1,710-2,690 MHz.
Break detection The Ajax system detects a break of the external antenna and notifies users and the monitoring company.
3 m cable A cable length of 3,000 mm with an SMA connector.
Simple fixing Stuck to a surface with pre-applied double-sided adhesive tape.
Specifications on this page follow the Ajax Systems technical specifications for ExternalAntenna.

Key Specifications

Channels
2G/3G/LTE, Jeweller, Wings
Connector
SMA
Cable length
3,000 mm
Size
115.6 x 21.7 x 5.8 mm
Weight
41 g
Temperature
-40 to +85 degrees C
Colour
Black
Warranty
24 months

Core Features

External antenna: An external antenna for LTE and radio communication channels.
Communication channels: 2G/3G/LTE, Jeweller and Wings.
Operating frequencies: 698-960 MHz and 1,710-2,690 MHz.
SMA connector: Connects to the hub communication channels.
Break detection: An Ajax system can detect a breakage of an external antenna and notify users and the monitoring company.
Installation: The antenna goes outside through holes in the hub casing and is attached to the surface with pre-applied double-sided adhesive tape.
Operating range: -40 to +85 degrees C at up to 95% humidity.
In the box: The ExternalAntenna and a quick start guide.

Technical Specifications

Category Specification
Product name ExternalAntenna
Type External antenna for LTE and radio communication channels
Communication channels 2G/3G/LTE, Jeweller, Wings
Operating frequencies 698-960 MHz, 1,710-2,690 MHz
Connector SMA
Sabotage protection External antenna breakage detection, with notification to users and the monitoring company
Installation Connected to the hub communication channels, goes outside through holes in the hub casing, attached with pre-applied double-sided adhesive tape
Dimensions 115.6 x 21.7 x 5.8 mm
Cable length 3,000 mm
Weight 41 g
Operating temperature -40 to +85 degrees C
Operating humidity Up to 95%
Colour Black
Complete set ExternalAntenna, quick start guide
Warranty 24 months, as published by Ajax Systems

Downloads

Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.

Questions and answers

No questions about this product yet. Ask ours first, and a licensed installer will answer.

Ask a question

Questions are shown once we have answered them. For something urgent, call 0406 432 691.

Get a quote for this product

Quick request

Name and phone, that is all. We will get back to you the same day, Monday to Saturday.

What would you like?

We use your details only to answer this request. Privacy policy

Prefer the full form?

Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.

The full quote form opens as you scroll here.

Frequently Asked Questions

It improves the reception of the cellular (2G/3G/LTE) and radio (Jeweller, Wings) channels of a compatible Ajax hub by moving the antenna outside the casing.

Ajax publishes a device compatibility list on its specification page. Ask us to confirm your hub model before you order.

SMA, on a 3,000 mm cable.

Yes. An Ajax system can detect a breakage of an external antenna and notify users and the monitoring company.

It goes outside through holes in the hub casing and is attached to the surface with pre-applied double-sided adhesive tape.

The ExternalAntenna and a quick start guide.

Yes. We supply and install Ajax systems across Melbourne and the Mornington Peninsula. Request a quote and we will plan the installation with you.
