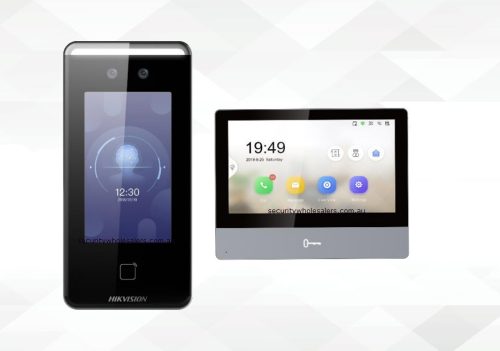

Hikvision DS-KIS901-P Facial Recognition IP Intercom Kit
The Hikvision DS-KIS901-P is a facial recognition IP intercom kit pairing a DS-KH8350-WTE1 indoor monitor with a DS-K1T341AM face recognition terminal. Face recognition completes in under 0.2 seconds from 0.3 to 1.5m, with face anti-spoofing support and a 1500-face onboard capacity.
The terminal also supports Mifare card access (1500-card capacity) and integrates with access control via Wiegand, RS-485, a lock output and exit button. Includes 2x 12V plug packs and a 16GB SD card. Rated IP65 for outdoor use. Includes a 3-year warranty.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Model | DS-KIS901-P |
| Kit Includes | 1x DS-KH8350-WTE1 monitor, 1x DS-K1T341AM face recognition terminal, 2x 12V plug packs, 1x 16GB SD card |
| Terminal Protection Level | IP65 |
| Terminal Power Supply | 12VDC, 2A |
| Working Temperature | -30°C to 60°C |
| Working Humidity | 0 to 90% (no condensing) |
| Face Antispoofing | Supported |
| Live View | Supported on platform, H.264 |
| Face Recognition | Supported in low illumination |
| Access Control | Supports multiple authentication methods |
| Card Type | Mifare 1 |
| Card Reading Distance | 0 to 3cm |
| Card Reading Duration | Under 1 second |
| Face Recognition Duration | Under 0.2 seconds |
| Face Recognition Distance | 0.3 to 1.5m |
| Card Capacity | 1,500 |
| Face Capacity | 1,500 |
| Event Capacity | 150,000 |
| Network Interface | 1x RJ45, 10/100/1000 Mbps self-adaptive |
| Communication Protocol | EHome 5.0 |
| Other Interfaces | 1x RS-485, Wiegand 26/34, 1x lock output, 1x exit button, 1x door contact input, 1x USB 2.0 |
| Audio | Built-in omnidirectional microphone and loudspeaker |
| Camera | 2MP with WDR |
| Warranty | 3 years |
Similar products
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
Under 0.2 seconds, from a distance of 0.3 to 1.5m, with support for low-illumination conditions.
Yes, the terminal includes face anti-spoofing to reject attempts to fool it with a photo or video.
Yes, it supports Mifare card access with a capacity of 1,500 cards, alongside face recognition.
Yes, it has Wiegand 26/34, RS-485, a lock output and exit button for integration with door hardware.
Yes, it's rated IP65 for water resistance.
This product includes 3 years warranty plus SIPKO support, with installation, commissioning and ongoing service options available for Melbourne customers.
Face Recognition Entry in Under 0.2 Seconds
The Hikvision DS-KIS901-P recognises faces in under 0.2 seconds with anti-spoofing protection, plus Mifare card access for a combined entry solution.
