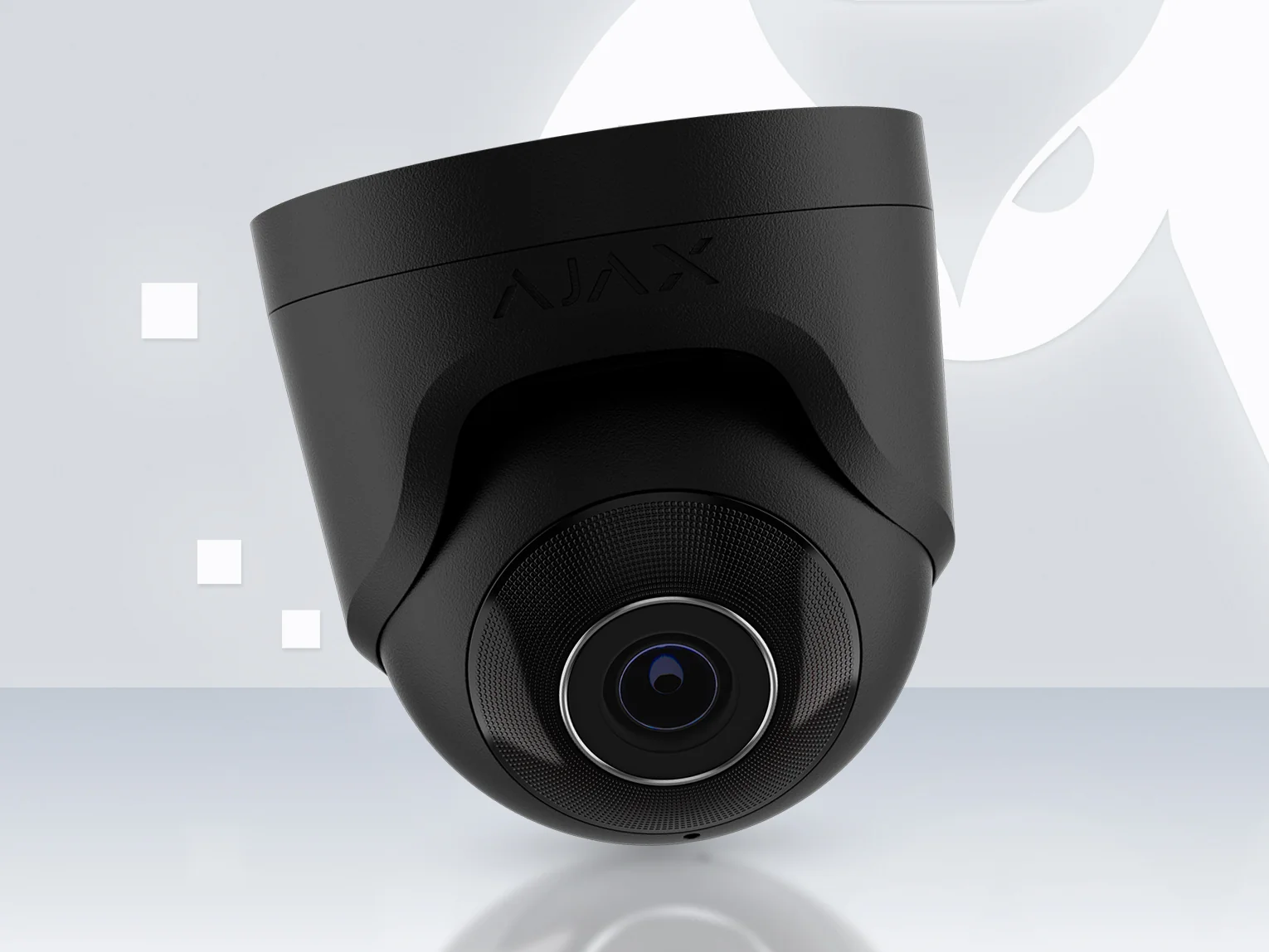

AJAX TurretCam 8MP 2.8mm Black - 4K AI Wired IP Security Camera

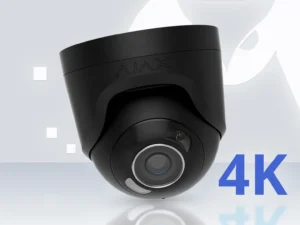

They are separate Ajax models. The TurretCam on this page has IR illumination only, up to 164 ft (about 50 m). The TurretCam HL adds hybrid illumination, with a white light as well as IR. Check the model name and code before you order, or ask us and we will confirm it for you.

At 8 MP Ajax lists up to 20 fps in Linear mode and up to 15 fps in HDR mode. Lower resolutions are available if you prefer a different balance of detail and storage.

Either by PoE (802.3at/af, 36 to 57 V, Class 3) over one network cable, or from an external 12 V DC, 1 A supply. Average power use is 8.5 W.

It is rated IP66 and IK08 and operates from -22 to 140 degrees F (about -30 to 60 degrees C) at up to 90% humidity. Ajax lists it for outdoor and indoor use.

The camera, an installation template, an installation kit and a quick start guide. A microSD card is not included, and a network cable and power supply are not part of the listed set.

The IR illumination reaches up to 164 ft (about 50 m) and adjusts its strength in real time. The detection distances Ajax publishes for this lens are 296 ft to detect a person, 118 ft to observe, 59 ft to recognise and 30 ft to identify.

It is conformant with ONVIF Profile G and S, so it can be used with ONVIF recorders. Ajax notes that H.265 encoding, motion and AI event transmission and WDR control are not ONVIF conformant, so some functions may be limited outside the Ajax system. Ask us to check your recorder first.

Yes. Ajax also lists a 4 mm version of the TurretCam 8 MP, with a 75 to 85 degree view that reaches further along a driveway or gate. The 2.8 mm model on this page has the widest view, 100 to 110 degrees across.

In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.

Yes. We supply and install Ajax cameras across Melbourne and the Mornington Peninsula. Request a quote and we will plan cable runs, power and the recording setup with you.
