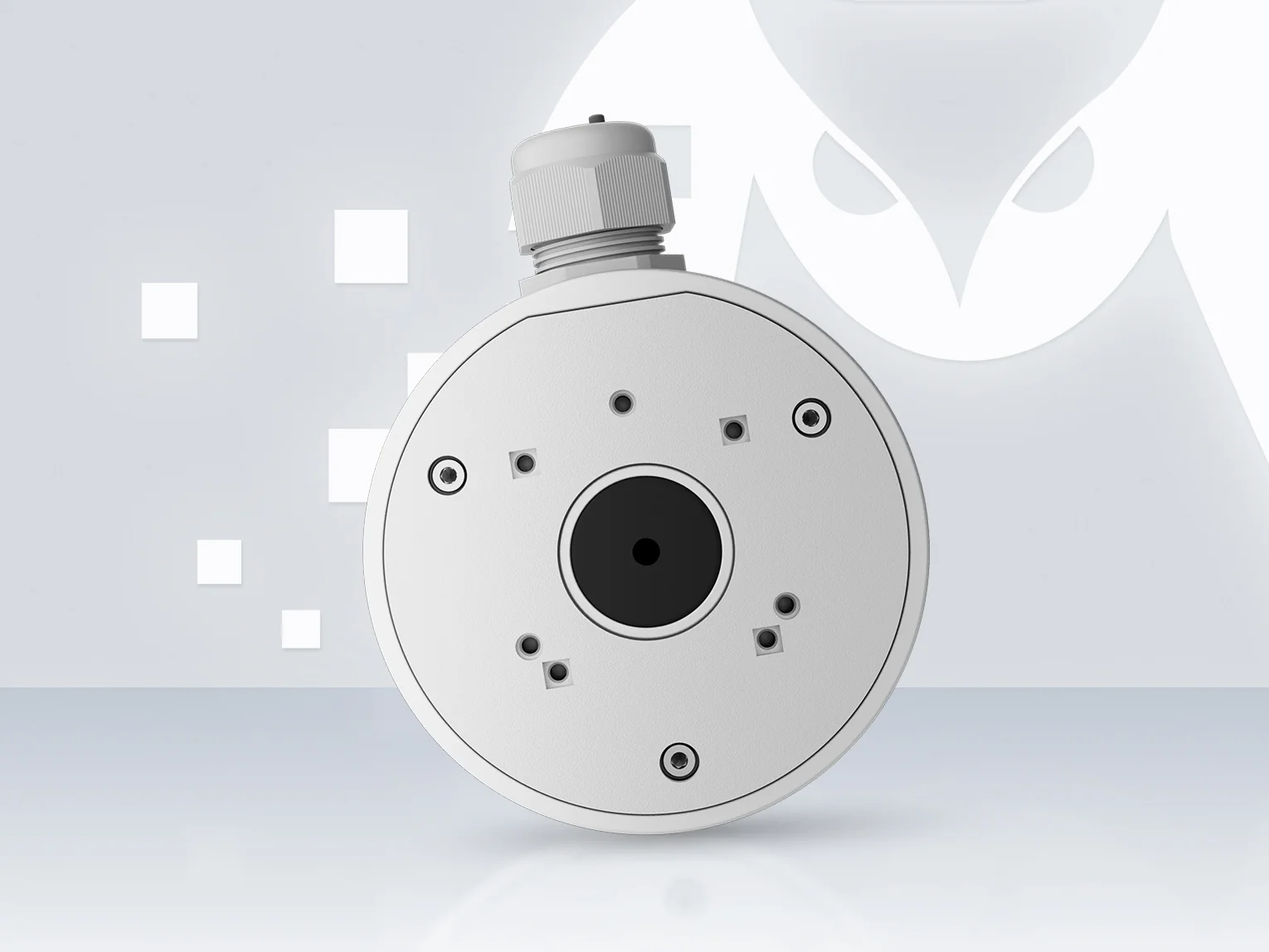

AJAX JunctionBox 118×59 White - Waterproof Mounting Box for AJAX Cameras
The AJAX JunctionBox 118×59 White is a waterproof mounting box for cable management of AJAX wired security cameras. Rated IP66, it protects wiring and connections from water and dust, and includes a G3/4 cable gland with a two-cable sealing ring for PoE or dual Ethernet/power cabling, plus a grounding terminal. Designed for installation on concrete walls, ceilings, or columns, indoors or outdoors. Box only - camera and mount not included.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | AJAX JunctionBox 118×59 White |
| Model/SKU | 88881 |
| Type | Waterproof mounting box for cable management of AJAX wired cameras |
| Model Size | 118×59 |
| Weather Rating | IP66 |
| Cable Gland | G3/4, with two-cable sealing ring for waterproof PoE or dual Ethernet/power cabling |
| Grounding | Grounding terminal included |
| Compatible Devices | AJAX BulletCam, TurretCam, DomeCam Mini, MountCam A1, MountCam B1 |
| Color | White |
| Installation Surfaces | Concrete wall, ceiling, or column |
| Use | Indoor or outdoor |
| Package Includes | 1 × JunctionBox 118×59 White (camera and camera mount sold separately) |
| Warranty | Contact Sipko Security for warranty information |
| Price | Price on Request |
Similar products
-
AJAX Ceiling Mount Bracket Black - Professional Australian Made Motion Sensor Mounting Bracket
Price on request
-
AJAX Hood for MotionProtect Outdoor
Price on request
-
AJAX Module Holder Type B ASP Black - Professional AJAX Module Installation Accessory
Price on request
-
AJAX MountCam A1 Black - Professional 164MM Wall Mount IP Camera Accessory
Price on request
-
AJAX MountCam A2 Black - 174mm Wall Mount for Varifocal Cameras
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
The JunctionBox is a waterproof mounting box that sits behind an AJAX wired camera, providing a sealed space for cable connections. It protects the camera's cabling and connectors from water and dust, and is typically installed beneath a MountCam wall mount or directly on the mounting surface.
The JunctionBox is compatible with AJAX BulletCam, TurretCam, and DomeCam Mini wired cameras, and with the AJAX MountCam A1 and MountCam B1 wall mounts. Always confirm compatibility with your exact camera and mount model before purchase.
Yes. The JunctionBox is rated IP66, protecting cable connections from water and dust, and is designed for both indoor and outdoor installation on concrete walls, ceilings, or columns.
The JunctionBox has a G3/4 cable gland with a two-cable sealing ring, so it can accept a single waterproof PoE cable or a separate Ethernet and power cable, depending on your camera's connection type.
Yes. A grounding terminal is built in, helping protect the installation against short circuits and accidental electric shock.
No. The JunctionBox is sold separately from the AJAX camera and any wall mount (such as MountCam A1 or B1). It provides the waterproof cable management box that sits behind them.
The JunctionBox is designed for mounting on concrete walls, ceilings, or columns. Speak with Sipko Security about the right fixings for your specific surface.
Yes. Correct sealing of the cable gland and secure mounting are important for the JunctionBox's waterproofing to work as intended. Sipko Security provides professional installation for AJAX wired camera systems across Melbourne.
Professional AJAX Camera Installation in Melbourne
The AJAX JunctionBox 118×59 White is a waterproof mounting box that keeps AJAX wired camera cabling protected and tidy. Sipko Security supplies and installs genuine AJAX camera accessories for residential and commercial properties across Melbourne.
