Home›IP Cameras›AJAX BulletCam HLVF 8MP White – 4K Wired IP Bullet Camera, 2.8-12 mm Varifocal
Security Products Melbourne

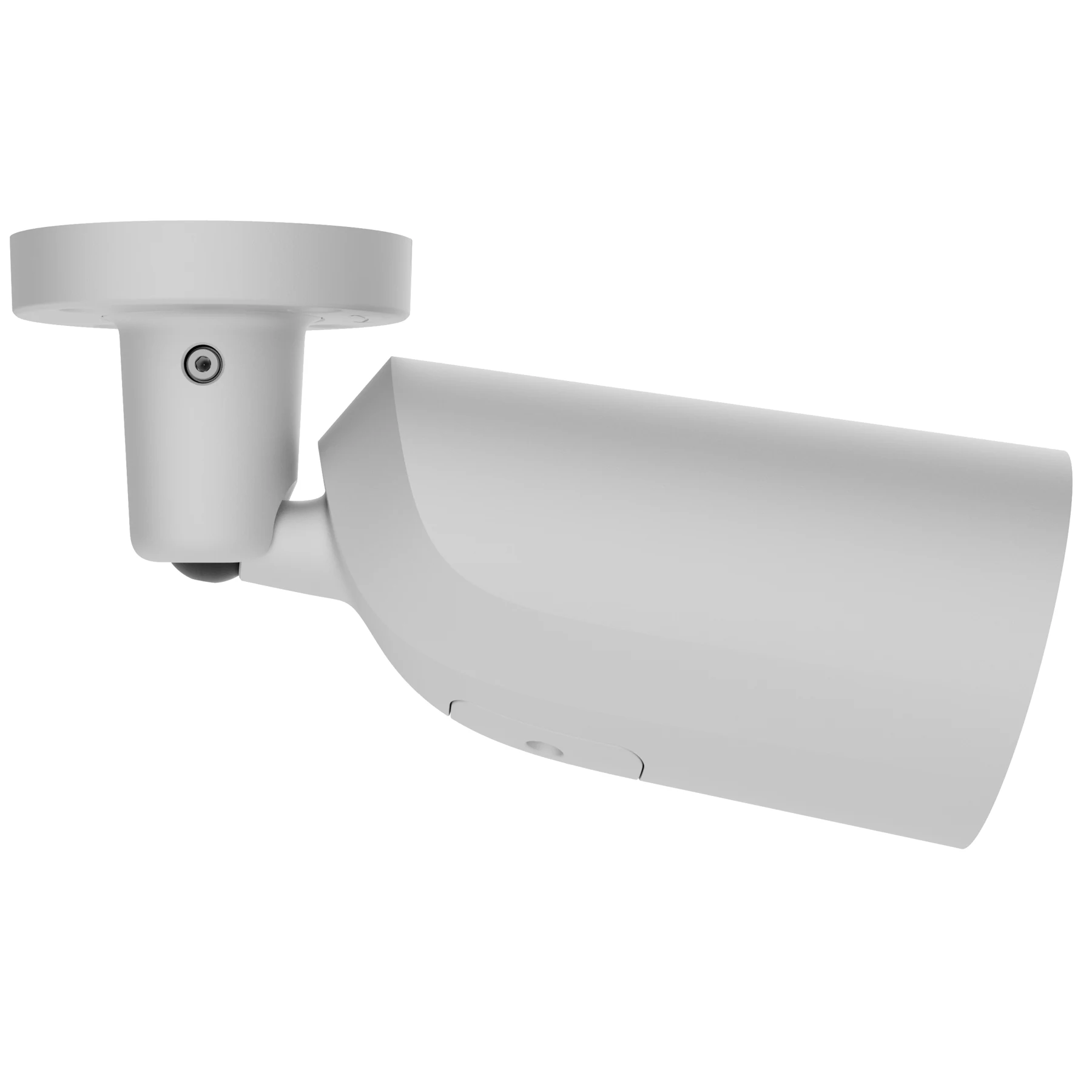

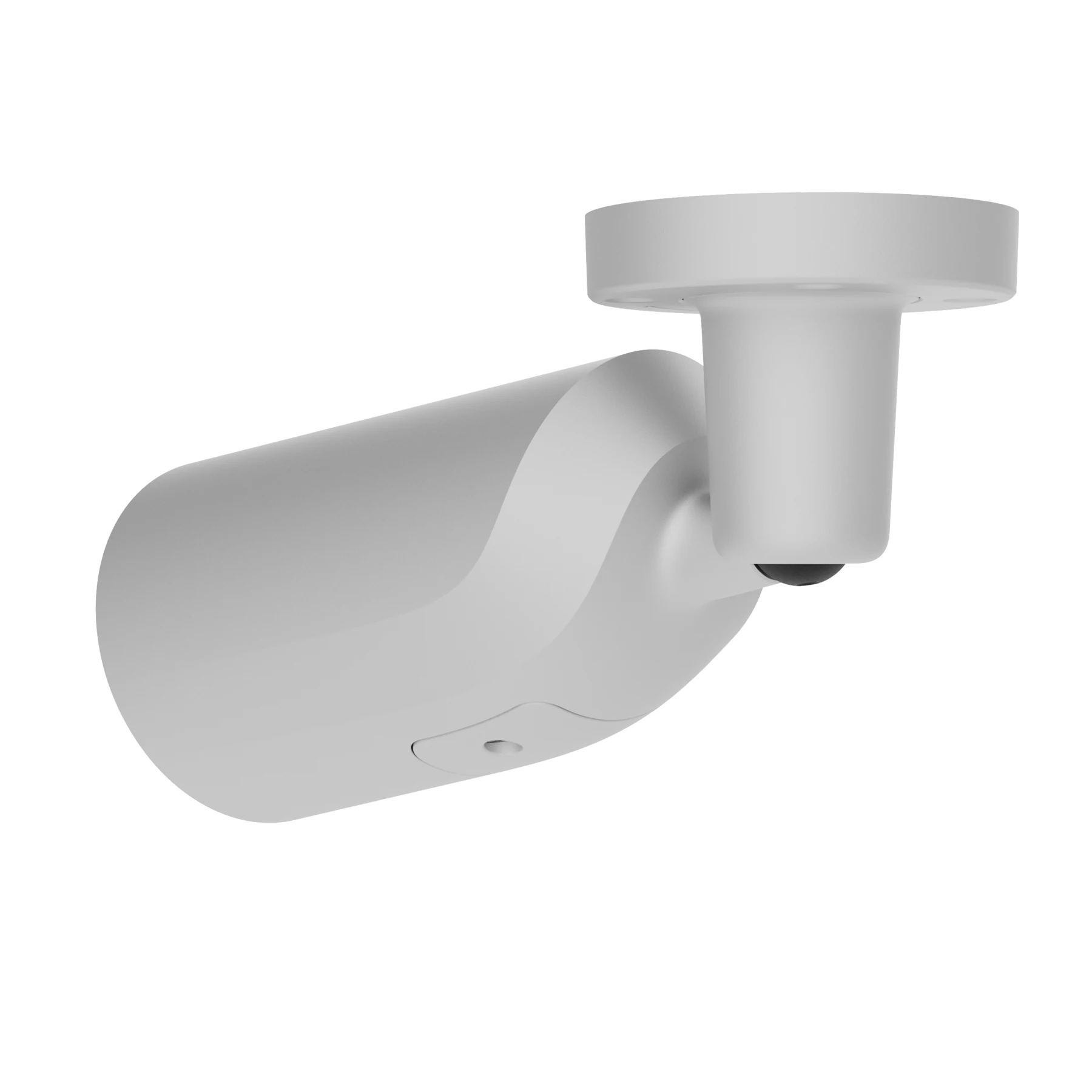

AJAX BulletCam HLVF 8 MP white wired bullet camera, front three-quarter view White AJAX wired bullet camera on a wall mount, angled view AJAX BulletCam HLVF 8 MP white bullet camera seen from the side and underneath, showing the swivel mount and base AJAX BulletCam HLVF 8 MP white bullet camera seen from the other side, showing the swivel bracket screw and base

AJAX BulletCam HLVF 8MP White - 4K Wired IP Bullet Camera, 2.8-12 mm Varifocal

SKU: AJAX-BULLETCAM-HLVF-8MP-2-8MM-WHITE
In Stock
The AJAX BulletCam HLVF (8 MP) is a wired AI-powered IP bullet camera with a 2.8 to 12 mm motorised varifocal lens, hybrid IR and white LED illumination, True WDR, a built-in microphone, and audio and alarm inputs and outputs. It runs on PoE or 12 V and is rated IP67 and IK10 for outdoor and indoor use.
4K Ultra HD PoE or 12 V
$1.00
Contact Us View Full Specs
Call me back
Motorised varifocal lens 2.8 to 12 mm lens with autofocus and manual focus control, set in the Ajax apps.
AI object detection Detects people, pets and vehicles, with line-crossing detection.
Hybrid illumination IR LED to 196 ft and white LED to 131 ft, with intelligent lighting control.
Built-in tamper protection Accelerometer alerts if the camera is moved or dismounted. Encrypted connection and secure boot.
Specifications on this page follow the Ajax Systems technical specifications for BulletCam HLVF (8 MP). Check the datasheet for your exact model.

Key Specifications

Resolution
8 MP (3840 x 2160)
Frame rate
Up to 25 fps
Lens
2.8-12 mm motorised varifocal
Field of view
31 to 111 degrees horizontal
Night illumination
IR to 196 ft, white LED to 131 ft
Dynamic range
120 dB True WDR
Power
PoE 802.3at/af or 12 V DC
Protection
IP67 / IK10

Core Features

Resolution: Up to 8 MP (3840 x 2160) at up to 25 fps, with lower resolutions down to 0.6 MP.
Video codecs: H.265 and H.264.
True WDR: 120 dB dynamic range for scenes with bright and dark areas.
Low light: Minimum illumination 0.005 lx in colour and 0 lx in black and white.
AI object detection: People, pets, vehicles and line crossing, plus motion detection.
Audio: Built-in microphone, an external microphone input and a speaker output.
Alarm inputs and outputs: Two alarm inputs (NO or NC) and an alarm output rated 24 V DC, 300 mA, for third-party devices.
ONVIF: Conformant with ONVIF Profile G and S. Some functions, such as H.265 and AI events, are not ONVIF conformant.
On-camera storage: microSD card up to 256 GB, Class V30 or faster. The card is not included.
Alarm verification: Ajax detectors can trigger the camera to record, and the clip is sent to the Ajax app.

Technical Specifications

Category Specification
Product name AJAX BulletCam HLVF (8 MP)
Type Wired AI-powered IP bullet camera, outdoor and indoor
Image sensor 8 MP CMOS, 1/2.8 inch
Lens 2.8-12.0 mm motorised varifocal, maximum aperture f/1.6, fixed iris
Field of view Horizontal 31 to 111 degrees, vertical 17 to 57 degrees, diagonal 35 to 135 degrees
Illumination distance White LED up to 131 ft (about 40 m), IR LED up to 196 ft (about 60 m)
Minimum illumination Colour 0.005 lx, black and white 0 lx
Signal-to-noise ratio More than 52 dB
Video resolution 8 MP (3840 x 2160), 6 MP (3072 x 1728), 5 MP (2944 x 1656, 2880 x 1620, 2688 x 1520, 2592 x 1944), 4 MP (2560 x 1440), 3 MP (2304 x 1296), 2 MP (1920 x 1080), 0.6 MP (1024 x 576)
Frame rate Up to 25 fps
Video codec H.265, H.264
Dynamic range 120 dB (True WDR)
Storage microSD up to 256 GB, Class V30 or faster, not included
Audio Built-in microphone. Codecs G.711 mu-law, G.711 A-law, G.726, G.722
Video analytics Motion detection. AI object detection: people, pets, vehicles. Line crossing
Network port 1 x RJ45 self-adaptive Ethernet (10/100 Mbps)
Protocols HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS
ONVIF Conformant with ONVIF Profile G and S
Alarm port 2 inputs (NO, NC), configured in Ajax apps. Alarm output 24 V DC, 300 mA
Audio port 2 lines: external microphone input (active microphones) and speaker output (3 W minimum, 4 ohm or more)
Power over Ethernet 802.3at/af (Class 3)
External power 12 V DC, 1 A, 2-pin screw terminal connector
Power consumption Average up to 6 W, maximum up to 12 W
Dimensions 9.53 x 3.52 x 3.52 in (about 242 x 89 x 89 mm)
Weight 2.07 lb (about 940 g)
Operating temperature -40 to 140 degrees F (about -40 to 60 degrees C)
Operating humidity Up to 90%
Protection class IP67, IK10
Colour White or black
Complete set BulletCam HLVF (8 MP), installation template, installation kit, 3 screw terminal connectors, quick start guide
Compliance EU Declaration of Conformity. RoHS EN IEC 63000:2018. EMC EN 55032:2015+A11:2020, EN 55035:2017+A11:2020. LVD EN IEC 62368-1:2024+A11:2024
Warranty 24 months, as published by Ajax Systems

Downloads

Documents are published by the manufacturer and open in a new tab. Specifications can change between production batches, so check the document for your exact model.

Questions and answers

No questions about this product yet. Ask ours first, and a licensed installer will answer.

Ask a question

Questions are shown once we have answered them. For something urgent, call 0406 432 691.

Get a quote for this product

Quick request

Name and phone, that is all. We will get back to you the same day, Monday to Saturday.

What would you like?

We use your details only to answer this request. Privacy policy

Prefer the full form?

Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.

The full quote form opens as you scroll here.

Frequently Asked Questions

They are separate Ajax models. The BulletCam HLVF (8 MP) on this page has a 1/2.8 inch sensor, a 2.8-12 mm lens at f/1.6 and a horizontal field of view of 31 to 111 degrees. The Superior BulletCam HLVF has a larger 1/1.8 inch sensor, a P-iris lens at f/1.4-2.3, microSD support up to 512 GB and a bigger body. Check the model name before you order.

Either by PoE (802.3at/af, Class 3) over one network cable, or from an external 12 V DC, 1 A supply on the 2-pin screw terminal. Power use is up to 6 W on average and up to 12 W at maximum.

It is rated IP67 and IK10 and operates from -40 to 140 degrees F (about -40 to 60 degrees C) at up to 90% humidity. Ajax lists it for outdoor and indoor use.

The camera, an installation template, an installation kit, 3 screw terminal connectors and a quick start guide. A microSD card, network cable and power supply are not part of the complete set.

It is conformant with ONVIF Profile G and S, so it can be used with ONVIF recorders. Ajax notes that H.265 encoding, motion and AI event transmission and WDR control are not ONVIF conformant, so some functions may be limited outside the Ajax system. Ask us to check your recorder first.

In the Downloads section on this page. The documents are published by Ajax Systems and open on the Ajax website.

Yes. We supply and install Ajax cameras across Melbourne and the Mornington Peninsula. Request a quote and we will plan cable runs, power and the recording setup with you.

No. Ajax states that the BulletCam HLVF is not compatible with MountCam mounts. The camera has its own swivel mounting bracket. If you need a different position, ask us before you buy.

Need the AJAX BulletCam HLVF 8MP White - 4K Wired IP Bullet Camera, 2.8-12 mm Varifocal installed?

Sipko Security supplies and installs this product as part of complete Melbourne security systems.

Request a Quote View CCTV Installation Services
