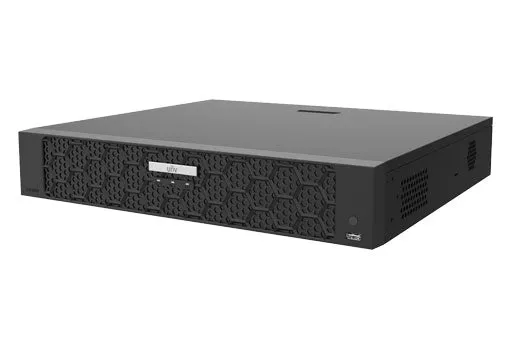

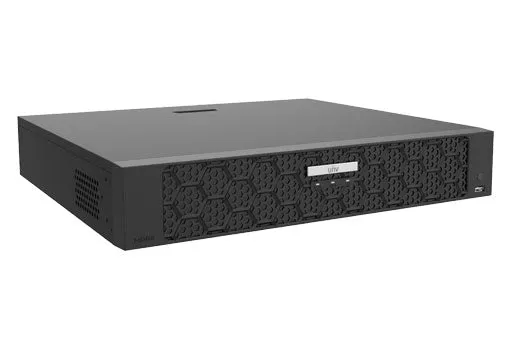

UNV NVR504‑32B‑P16 16‑Channel PoE Network Video Recorder | Melbourne
A powerful 32‑channel 1U PoE NVR with 16 independent PoE ports (IEEE 802.3at/af, up to 30 W per port, total 150 W).
Supports Ultra 265/H.265/H.264 compression, up to 16MP recording, and features 4 SATA bays (up to 16 TB each) with RAID 1/5.
Ideal for Melbourne commercial and residential installations requiring a simple plug‑and‑play PoE solution.
A$750.00 +GST
Professional NVR – final pricing depends on HDD configuration and installation scope. 32‑channel model (NVR504‑32B‑P16) also available.
Price on application
16 Independent PoE Ports
Plug‑and‑connect for up to 16 cameras – no external switch needed. 802.3at/af, 30 W per port, total 150 W.
4 SATA Bays + RAID
Up to 16 TB per drive, supports RAID 1 and RAID 5 for data redundancy and increased capacity.
Ultra 265 + 4K HDMI
Latest compression saves storage; HDMI output up to 4K for crisp live view and playback.
16‑ch Alarm I/O
16 alarm inputs, 4 alarm outputs – ideal for integration with sensors and access control.
Melbourne installs: Perfect for small‑to‑medium businesses, retail, and residential estates. We supply, rack‑mount, install HDDs, configure PoE cameras, and set up recording/remote access. 32‑channel model also available.
Keywords:
UNV NVR504‑32B‑P16
· 16‑channel PoE NVR · 16 PoE ports · 4K · RAID · Ultra 265 · Melbourne
Technical Specifications
Quick Specs
Video Input
16‑ch IP (32‑ch model also available), up to 16MP per channel
Decoding (Ultra 265/H.265)
2×16MP@30, 4×4K@30, 8×4MP@30, 16×1080P@30
Bandwidth
320 Mbps incoming / 160 Mbps outgoing
PoE Interfaces
16× RJ45 10/100M, 802.3at/af, 30W max per port, total 150W
Storage
4× SATA, up to 16TB each; RAID 1, RAID 5; hot‑swap not supported
Audio
1‑ch RCA in, 1‑ch RCA out, two‑way audio, G.711A/U
Alarms
16‑ch alarm in, 4‑ch alarm out
Smart Features
Face/vehicle detection via IPC; VCA search (human/vehicle/body); ANR; cloud upgrade
Full NDAA‑compliant model. Dimensions: 400×368×74 mm, weight ≤4 kg (without HDD). Power: AC 100–240V, ≤20W (no HDD).
Why Choose This UNV PoE NVR in Melbourne
True plug‑and‑play
1
All‑in‑one PoE convenience
16 built‑in PoE ports eliminate the need for a separate switch – power and data over one cable.
2
RAID data protection
RAID 1 or 5 ensures your footage is safe even if a hard drive fails – critical for commercial sites.
3
High‑bandwidth recording
320 Mbps incoming bandwidth supports multiple 4K cameras simultaneously without dropping frames.
4
Future‑proof compression
Ultra 265 reduces storage costs while maintaining high image quality – ideal for longer retention.
Our Seamless Installation Process
Step‑by‑step
1
Site survey
Assess cabinet space, camera locations, and cable runs to optimise PoE connections.
2
Mount & connect
Rack‑mount the NVR, install HDDs, connect cameras to PoE ports, and power up.
3
Configure system
Set up recording schedules, RAID, motion detection, smart events, and remote access.
4
Test & handover
Verify live view, playback, and alert notifications; provide client walkthrough.
Tip: For maximum reliability, configure RAID 1 or 5 and enable ANR on compatible cameras.
Request Your Free Installation Quote
Fast response
Tell us about your project: number of cameras, HDD capacity needs, and whether you prefer the 16‑channel or 32‑channel model. We’ll provide a clear quote for supply and Melbourne installation.
Frequently Asked Questions
10 FAQs
Both models (16‑channel and 32‑channel) include 16 independent PoE ports, each supporting IEEE 802.3at/af with up to 30W per port (total 150W).
The NVR supports up to 16MP per channel, with decoding capability for 2 channels of 16MP at 30 fps.
Yes, it supports RAID 1 and RAID 5 with its 4 SATA bays, providing data redundancy and increased capacity.
Yes, it supports ONVIF Profiles S, G, T and RTSP, so most mainstream IP cameras can be added.
320 Mbps, allowing smooth recording from multiple high‑resolution cameras.
Up to 4 SATA HDDs, each supporting up to 16TB, giving a maximum raw capacity of 64TB.
It supports VCA events from compatible UNV cameras, including face/vehicle detection, intrusion, line crossing, people counting, and more.
Yes, the NVR504‑32B‑P16 offers 32‑channel recording while retaining the same 16 PoE ports and 4 SATA bays.
Automatic Network Replenishment – if network connection drops, the camera stores footage locally and the NVR retrieves it once the connection is restored.
We rack‑mount the NVR, install HDDs, connect and configure PoE cameras, set up recording and remote access, and provide a full handover.
Price Check Snapshot
Market reference
The UNV NVR504‑32B‑P16 is priced A$750.00 . Contact us with your HDD and accessory needs for a competitive quote. If you have a like‑for‑like quote from another supplier, we’ll do our best to match it.
