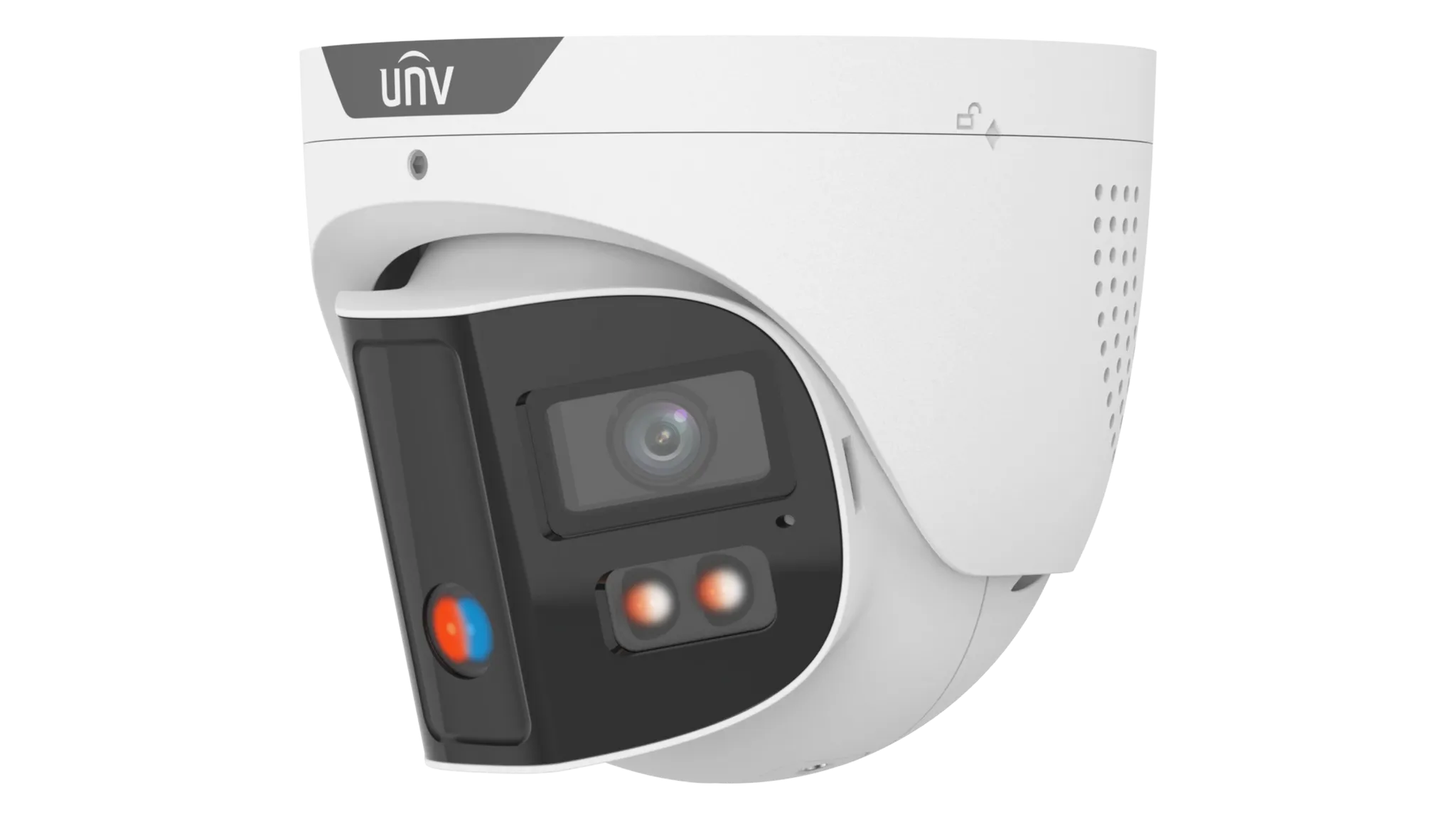

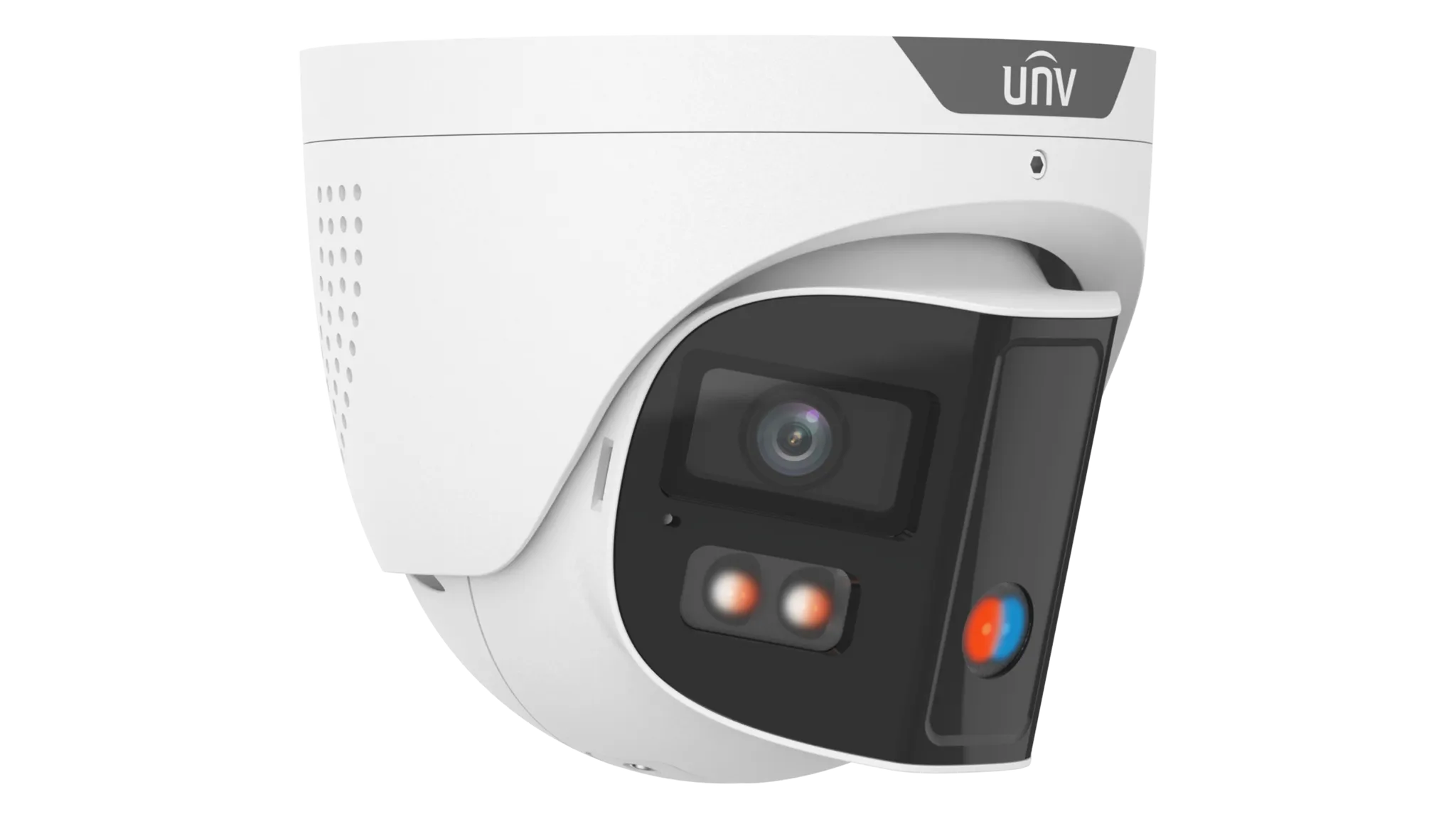

UNV IPC3K28SE‑ADF28KMC‑DL‑I0 4K HD ColorHunter Omniview 180° Turret Camera | Melbourne
A breakthrough 8MP 180° panoramic turret with dual‑lens splicing technology. Features ColorHunter for 24/7 full‑colour images, red & blue warning light, and built‑in speaker + dual mics for audible warnings. Equipped with smart intrusion prevention (human/vehicle classification), people counting, and 130 dB WDR. Ideal for wide‑area surveillance in Melbourne.
A$334.80 +GST
Commercial panoramic camera – final pricing depends on quantity and accessories.
Price on application
180° Panoramic View
Dual‑lens splicing delivers a seamless 180° horizontal FOV – covers wide areas with a single camera.
ColorHunter & Warning Light
24‑h full colour; red/blue visual warning and built‑in speaker for active deterrence.
Smart AI Classification
Human/vehicle/non‑motor vehicle filtering reduces false alarms; people counting and colour retrieval.
Built‑in Audio & Alarms
Dual mics, speaker, and 1/1 alarm I/O – enables two‑way talk and real‑time alerts.
Melbourne installs: Perfect for car parks, warehouses, retail spaces, and city streets. We supply, mount, configure, and integrate with your UNV NVR or third‑party system.
Keywords:
UNV IPC3K28SE‑ADF28KMC‑DL‑I0
· 8MP 180° camera · Omniview · ColorHunter · red/blue warning · audio deterrent · Melbourne
Technical Specifications
Quick Specs
Image Sensor
8MP 1/2.5″ CMOS; 4096×1860 @20fps; 0.0005 lux colour (F1.0)
Lens & FOV
2.8mm fixed F1.0; 180° horizontal, 65° vertical (dual‑lens splicing)
Illumination
IR & warm light both 30 m; red/blue warning light; 850 nm IR wavelength
Video Compression
Ultra 265/H.265/H.264/MJPEG; dual streams; 128 Kbps – 16 Mbps
Intelligent Features
Cross line, intrusion, enter/leave area (human/vehicle classification); people counting; colour retrieval
Audio & I/O
1in/1out audio, dual mics, built‑in speaker; alarm 1in/1out; microSD up to 512GB
Network
10/100M Ethernet, ONVIF (S/G/T), API, SDK; IPv4/v6, HTTPS, 802.1x, QoS
Protection
IP67, IK10, 4KV surge; operating -30°C to 60°C; metal housing
Power
DC12V±25%, PoE (802.3af); max 12.6 W; Ø5.5mm coaxial plug
Full NDAA‑compliant. Dimensions: Ø128.7×109.9 mm, weight 0.86 kg. DORI (2.8mm): Detect 63.1 m, Observe 25.2 m, Recognize 12.6 m, Identify 6.3 m.
Why Choose This UNV Omniview Camera in Melbourne
180° coverage
1
One camera, no blind spots
Replace two cameras with a single 180° unit – lower hardware and installation costs.
2
Active deterrence
Red/blue flashing light and built‑in speaker allow you to warn intruders in real time.
3
Full‑colour day & night
ColorHunter with F1.0 aperture delivers vivid colour 24/7, even in near darkness.
4
AI reduces nuisance alerts
Differentiates people, vehicles, and non‑motor vehicles – you get only meaningful notifications.
Our Seamless Installation Process
Step‑by‑step
1
Site survey
Identify optimal mounting height and location to maximise 180° coverage and audio reach.
2
Mount & cable
Install using junction box or wall mount, run Ethernet, and weatherproof connections.
3
Configure system
Set dual‑lens stitching, recording schedules, smart events, and audio warning rules.
4
Test & handover
Verify panoramic image, AI detection, two‑way audio, and provide client walkthrough.
Tip: Pair with UNV NVRs to fully utilise colour retrieval and advanced smart analytics.
Request Your Free Installation Quote
Fast response
Tell us about your project: number of cameras, mounting accessories, and whether you need an NVR. We’ll provide a clear quote and scope for Melbourne metro areas.
Frequently Asked Questions
10 FAQs
The camera uses two lenses and onboard stitching to create a seamless 180° horizontal image at 8MP (4096×1860).
Yes, ColorHunter technology with F1.0 aperture and warm light provides full‑colour images 24/7, down to 0.0005 lux.
They serve as a visual deterrent – can be triggered by events to warn off intruders, complementing the built‑in speaker.
Yes, it supports ONVIF Profiles S/G/T, as well as API and SDK integration.
Main stream 8MP (4096×1860) at 20 fps. Sub stream up to 2048×936 at 20 fps.
Yes, built‑in dual mics and a speaker allow full‑duplex communication.
Absolutely – IP67 weatherproof and IK10 vandal‑resistant metal housing, operating -30°C to 60°C.
Cross line, intrusion, enter/leave area with human/vehicle classification; people counting; colour retrieval.
Micro SD slot supports cards up to 512 GB; also supports NAS and ANR.
Junction box (TR-JB03‑H‑IN), wall mount (TR‑WM03‑B‑IN), or pole mount (TR‑UP06‑IN). Ask us for the right bracket.
Price Check Snapshot
Market reference
The UNV IPC3K28SE‑ADF28KMC‑DL‑I0 is priced A$334.80 per unit (excl. installation) based on current online listings in Australia. Contact us with your camera count and any mounting needs – we’ll provide a competitive quote. If you have a like‑for‑like quote from another supplier, we’ll do our best to match it.
