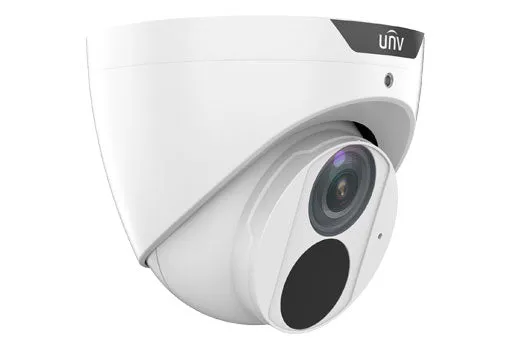

UNV IPC3618LE‑ADF28K‑GM 8MP Easystar IR Fixed Eyeball Network Camera | Melbourne
A compact 8MP fixed eyeball camera featuring Easystar technology for superior low‑light performance (0.005 lux colour). Delivers crisp 8MP images at 20 fps, Ultra 265/H.265 compression, 120 dB WDR, built‑in mic, and smart IR up to 30 m. Available with 2.8mm or 4.0mm fixed lens – ideal for Melbourne retail, offices, and residential applications. IP67 metal housing.
A$188.00 +GST
Value‑priced 8MP camera – final pricing depends on quantity and accessories.
Price on application
Easystar Low‑Light
0.005 lux colour performance – sharp images even in dim conditions without IR.
Dual Lens Options
Choose 2.8mm (112.9° H) for wide coverage or 4.0mm (approx. 84° H) for longer detection.
Smart IR & WDR
30 m smart IR, 120 dB true WDR for backlit scenes, built‑in mic, 256 GB microSD.
Compact & Rugged
IP67 weatherproof, metal housing, 3‑axis adjustment – fits any Melbourne environment.
Melbourne installs: Ideal for retail stores, cafes, offices, and homes. We supply, mount, configure, and integrate with your UNV NVR or third‑party system.
Keywords:
UNV IPC3618LE‑ADF28K‑GM · IPC3618LE‑ADF40K‑GM
· 8MP eyeball · Easystar · IR 30m · fixed lens · IP67 · Melbourne
Technical Specifications
Quick Specs
Image Sensor
8MP 1/2.7″ CMOS; 3840×2160 @20fps; 0.005 lux colour (Easystar)
Lens Options
2.8mm: H:112.9°, V:59.1°
4.0mm: approx. H:84°, V:47° (contact us)
4.0mm: approx. H:84°, V:47° (contact us)
Illumination
Smart IR up to 30 m (98 ft); 850 nm; 0 lux with IR on
Video Compression
Ultra 265/H.265/H.264/MJPEG; dual streams; 128 Kbps – 16 Mbps
Intelligent Features
Cross line/intrusion detection (based on human body), motion detection, tampering, audio detection
Audio & Storage
Built‑in mic; microSD up to 256 GB; ANR, NAS (NFS)
Network
10/100M Ethernet, ONVIF (S/G/T), API, SDK; IPv4, HTTPS, 802.1x
Protection
IP67, 4KV surge; -30°C to 60°C; metal housing
Full NDAA‑compliant. Dimensions: Φ110.5×94.1 mm, weight 0.425 kg. DORI (2.8mm): Detect 84 m, Observe 33.6 m, Recognize 16.8 m, Identify 8.4 m. (4.0mm: detect 120 m, etc.)
Why Choose This UNV Easystar Camera in Melbourne
Low‑light expert
1
Easystar low‑light
0.005 lux colour sensitivity delivers usable images in very dim conditions – often eliminating the need for IR.
2
Ultra‑efficient compression
Ultra 265 reduces bandwidth and storage by up to 50% compared to H.264 – ideal for longer retention.
3
Flexible lens choice
Select 2.8mm for wide indoor areas or 4.0mm for tighter outdoor shots – both with F1.6 aperture.
4
Rugged & compact
IP67 metal body, 3‑axis adjustment, and low power consumption (max 4.5 W) – easy to install anywhere.
Our Seamless Installation Process
Step‑by‑step
1
Site survey
Determine optimal placement, cable runs, and lens choice based on coverage needs.
2
Mount & cable
Secure camera using junction box or wall mount, run Ethernet, and weatherproof connections.
3
Configure system
Adjust angle, set recording schedules, motion detection, and remote access.
4
Test & handover
Verify image quality, night performance, and provide client walkthrough.
Tip: Pair with UNV NVRs for seamless integration and ANR.
Request Your Free Installation Quote
Fast response
Tell us about your project: number of cameras, lens preference (2.8 or 4.0mm), and whether you need an NVR. We’ll provide a clear quote and scope for Melbourne metro areas.
Frequently Asked Questions
10 FAQs
Easystar combines a high‑sensitivity sensor and advanced ISP to deliver usable colour images down to 0.005 lux – near darkness – without relying heavily on IR.
Two fixed‑focal options: 2.8mm (112.9° horizontal) for wide coverage, and 4.0mm (approx. 84° H) for slightly narrower view with longer detection.
Yes, a built‑in mic is included for audio capture. (No audio output.)
Smart IR provides up to 30 metres (98 ft) of illumination, automatically adjusting intensity to prevent overexposure.
It supports cross line and intrusion detection (based on human body detection), motion detection, tampering, and audio detection.
Yes, it supports ONVIF Profiles S/G/T, as well as API and SDK integration.
Absolutely – IP67 rated, metal housing, and operating temperature -30°C to 60°C.
DC 12V ±25% or PoE (802.3af). Maximum power consumption is only 4.5 W.
A microSD slot supports cards up to 256 GB, plus ANR and NAS (NFS).
We offer junction box (TR‑JB03‑G‑IN), wall mounts (TR‑WM03‑D‑IN, TR‑JB07/WM03‑G‑IN), pole mount (TR‑UP06‑IN), and pendant mounts. Ask us for the right bracket.
Price Check Snapshot
Market reference
The UNV IPC3618LE‑ADF28K‑GM is priced A$188.00 from major Australian suppliers. Installation costs vary based on project scope, but we aim to offer competitive rates for Melbourne customers. Contact us with your camera count and lens preference – we’ll provide a competitive quote. If you have a like‑for‑like quote from another supplier, we’ll do our best to match it.
