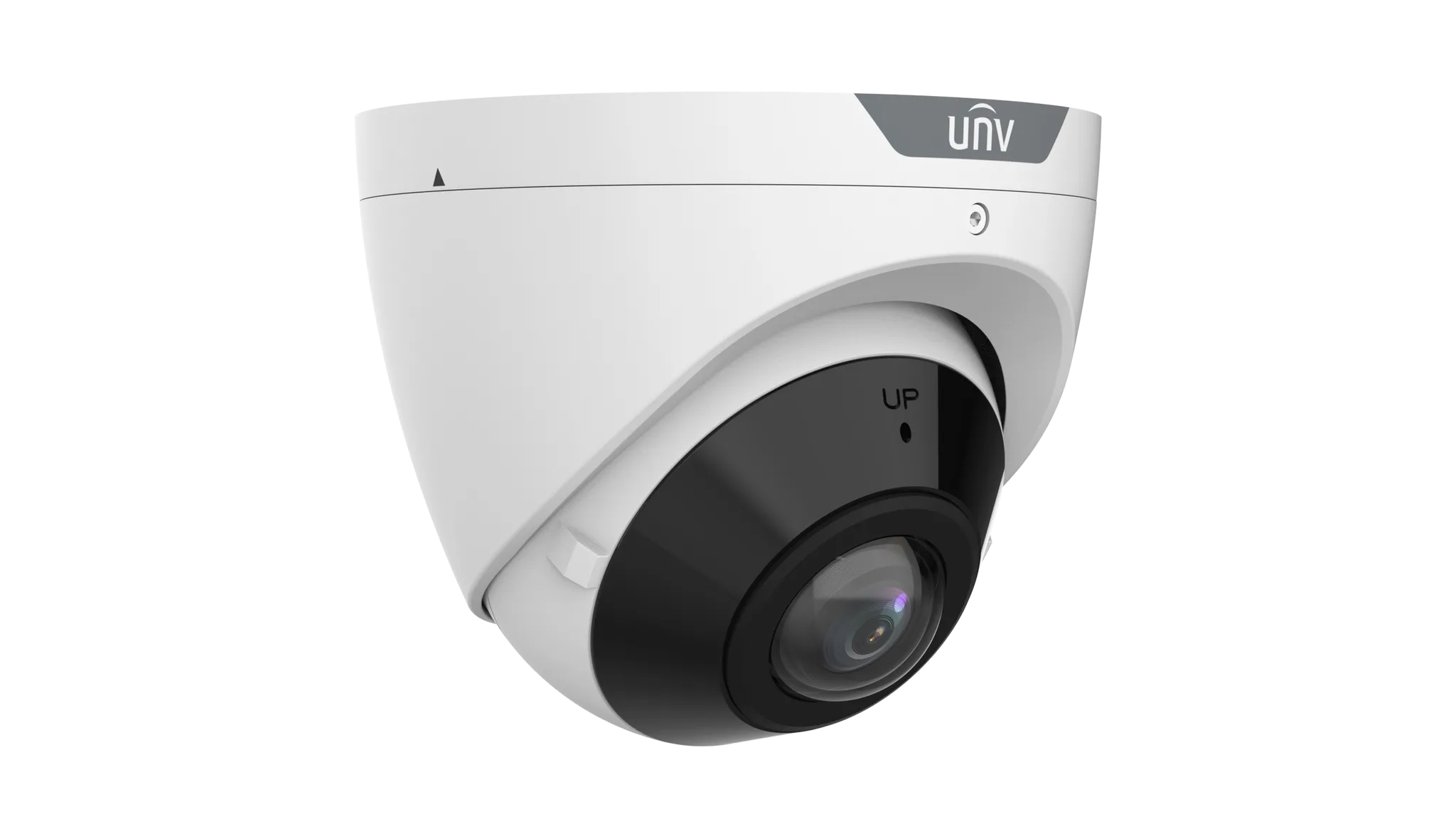

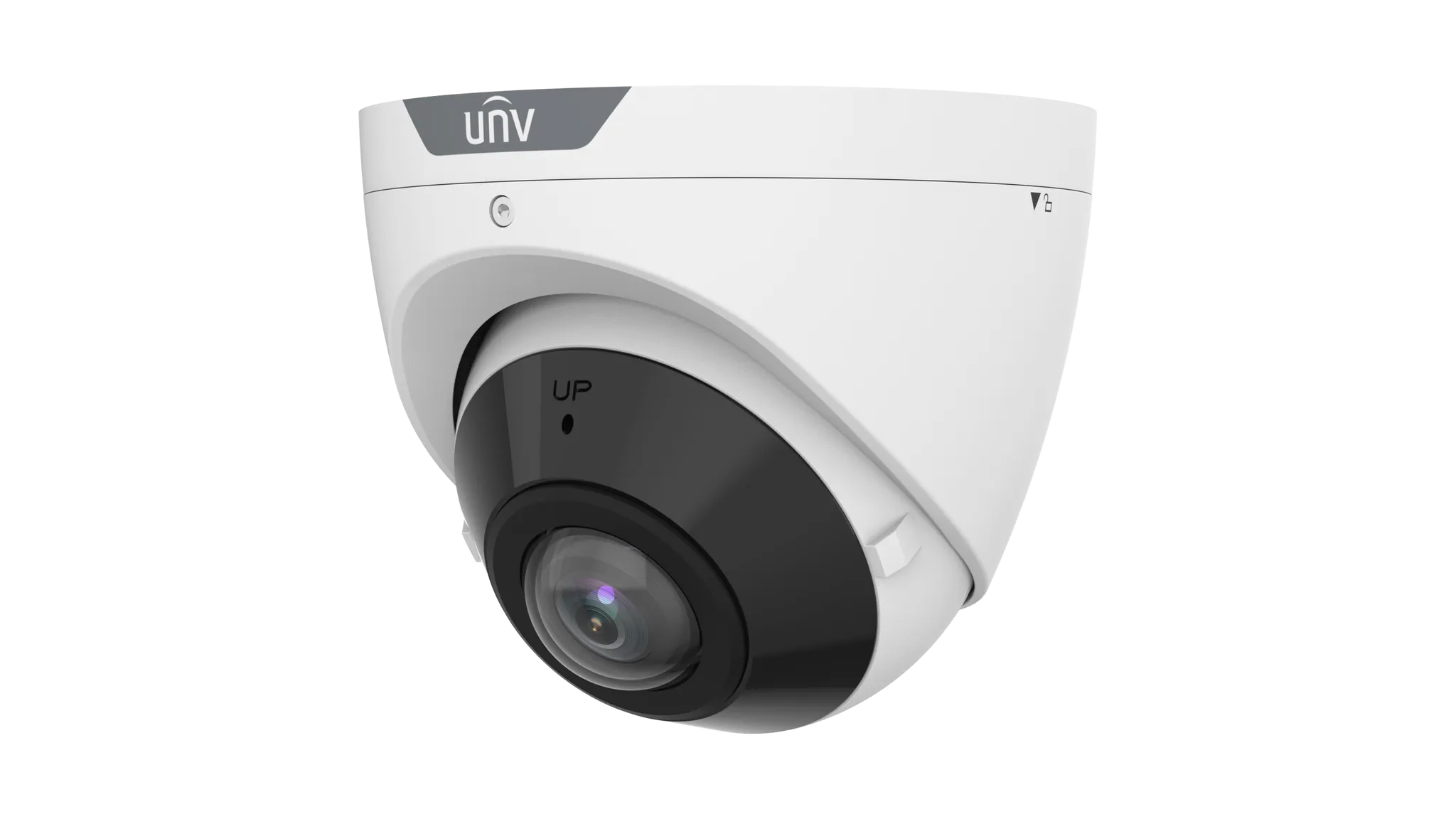

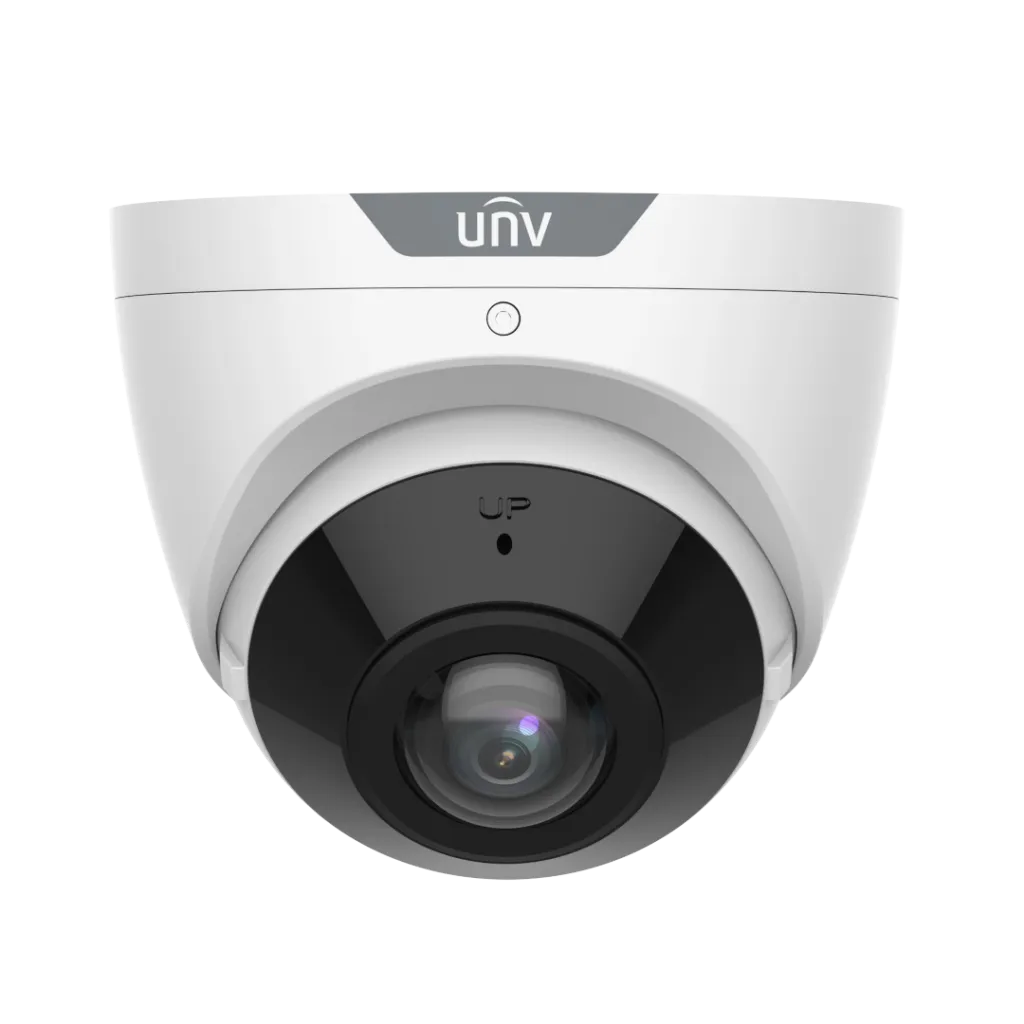

UNV IPC3608SB‑ADF16KM‑I0 8MP 180° Wide Angle IR Fixed Eyeball Camera | Melbourne
A powerful 8MP fixed eyeball camera with a 180° horizontal field of view – perfect for eliminating blind spots in corridors, warehouses, and open areas. Features smart intrusion prevention with target classification (human/vehicle), built‑in microphone, 120 dB WDR, and smart IR up to 20 m. Compact metal body with IP67/IK10 protection.
A$450.00 +GST
Professional IP camera – final pricing depends on mounting accessories and installation scope.
Price on application
180° Wide Angle + Dewarping
Ultra‑wide 180° horizontal view covers large areas; dewarping configurable from level 1 to 9.
Smart Intrusion Prevention
Cross line, intrusion, enter/leave area detection with classification of humans & vehicles to reduce false alarms.
Built‑in Mic & Smart IR
Onboard microphone for audio surveillance; smart IR up to 20 m for clear night vision.
120 dB WDR & Ultra 265
True WDR handles high‑contrast scenes; Ultra 265 compression saves bandwidth and storage.
Melbourne installs: Ideal for retail, warehouses, and corridors where one camera can replace two. We supply, mount, configure dewarping and analytics, and integrate with your UNV NVR or third‑party system.
Keywords:
UNV IPC3608SB‑ADF16KM‑I0
· 8MP eyeball · 180° wide angle · smart intrusion · built‑in mic · IP67 · IK10 · Melbourne
Technical Specifications
Quick Specs
Image Sensor
1/2.7″ progressive CMOS, 8MP (3840×2160)
Lens
1.68mm fixed, F2.0; H‑FOV 180°, V‑FOV 100°
Illumination
Smart IR up to 20 m; 0.01 lux colour, 0 lux with IR
Video Compression
Ultra 265, H.265, H.264, MJPEG; triple streams
Intelligent Features
Cross line, intrusion, enter/leave area with classification (human/vehicle); SIP color retrieval
Audio
Built‑in microphone (no audio out); G.711U/G.711A
Storage
MicroSD up to 512 GB, ANR, NAS
Protection
IP67, IK10, 4KV surge, -30°C to 60°C
Full NDAA‑compliant model. Dimensions: Ø111×93 mm, weight 0.48 kg. Power: DC12V or PoE (802.3af), max 5.5W.
Why Choose This UNV Wide Angle Camera in Melbourne
One camera, full coverage
1
180° coverage – fewer cameras
Eliminate blind spots in corridors, aisles, and open areas with a single camera – reduces hardware and installation costs.
2
Smart analytics with classification
Built‑in AI distinguishes humans, vehicles, and non‑vehicles, dramatically reducing nuisance alarms from animals or shadows.
3
Flexible dewarping
Adjust dewarping level (1‑9) to get the perfect rectilinear view for your application – no dead zones.
4
Compact & rugged
Metal body with IP67/IK10 – weatherproof and vandal‑resistant, ideal for exposed outdoor locations.
Our Seamless Installation Process
Step‑by‑step
1
Site survey
Identify optimal placement to maximise 180° coverage; check cable route and accessory needs (junction box, pole mount).
2
Mount & cable
Secure the camera, run Ethernet (PoE) or 12V power, and ensure the built‑in mic is unobstructed.
3
Configure dewarping & analytics
Set dewarping level, define intrusion zones, and enable target classification to suit your site.
4
Test & handover
Verify image quality, night performance, and demonstrate remote viewing and event notifications.
Tip: For best results in wide corridors, mount at medium height and use dewarping to obtain a natural perspective. We can advise on placement during the site visit.
Request Your Free Installation Quote
Fast response
Tell us about your project: number of cameras, mounting location (wall, ceiling, pole), and whether you need a junction box or other accessories. We’ll provide a clear quote for supply and Melbourne installation.
Frequently Asked Questions
10 FAQs
It offers an ultra‑wide 180° horizontal and 100° vertical field of view, with configurable dewarping (levels 1‑9).
Dewarping corrects the fisheye distortion from the wide‑angle lens, producing a natural rectilinear image suitable for viewing and analytics.
Yes, it has a built‑in microphone for audio surveillance, but no audio output or two‑way talk.
Smart IR illumination reaches up to 20 m (65 ft), providing clear night vision.
Yes, its smart intrusion prevention filters false alarms by classifying targets as human, motor vehicle, or non‑motor vehicle.
It supports MicroSD cards up to 512 GB for edge recording.
Absolutely – it has IP67 (dust/water) and IK10 (vandal) ratings, and operates from -30°C to 60°C.
Yes, it supports ONVIF Profiles S, G, and T, so it can integrate with many ONVIF‑compatible recorders.
It accepts DC 12V (±25%) or PoE (IEEE 802.3af). Maximum consumption is 5.5W.
UNV offers junction boxes, wall mounts, corner mounts, pole mounts, and pendant mounts – we can supply and install the right one for your site.
Price Check Snapshot
Market reference
The UNV IPC3608SB‑ADF16KM‑I0 is priced A$450.00. Contact us with your quantity and accessory needs for a competitive quote. If you have a like‑for‑like quote from another supplier, we’ll do our best to match it.
