VIVOTEK FD9380-HTV-V2 C Series AI 5MP Outdoor Fixed Dome Camera
The VIVOTEK FD9380-HTV-V2 is a C Series AI outdoor fixed dome camera with 5MP resolution (2880x1616px) and a 2.7-13.5mm motorised vari-focal lens with remote focus, giving installers on-site control over framing without a PTZ mechanism. WDR Pro balances high-contrast scenes, built-in Smart IR reaches up to 30m, and onboard Vision Object Analytics detects people and 4-wheeled vehicles at the edge. A metal, IK10-rated housing with IP66/IP67 protection suits outdoor commercial and residential installations.
Key Specifications
Core Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Name | VIVOTEK FD9380-HTV-V2 |
| Model/SKU | FD9380-HTV-V2 |
| Type | Outdoor fixed dome AI camera with motorised vari-focal lens (C Series AI) |
| Image Sensor | 1/2.8" progressive CMOS |
| Resolution | 5MP (2880x1616px) |
| Lens | 2.7-13.5mm motorised vari-focal, remote focus, F1.6-F3.1, fixed iris |
| Field of View | 111.0°-32.2° H, 57.0°-18.0° V, 136.0°-37.0° D |
| Shutter Speed | 1/5 sec to 1/32,000 sec |
| Night Vision | Built-in IR up to 30m with Smart IR, 2x IR LED |
| Wide Dynamic Range | WDR Pro, 120dB dynamic range |
| Minimum Illumination | 0.04 lux @F1.6 (color), 0.005 lux @F1.6 (B/W), 0 lux with IR on |
| Pan / Tilt / Rotation | Pan 353°, Tilt 75°, Rotation 350° |
| Video Compression | H.265 / H.264 / MJPEG |
| Maximum Frame Rate | 30 fps @ 2880x1620 |
| S/N Ratio | 52 dB |
| Max Streams | 3 simultaneous streams, up to 7 configurable profiles |
| Audio | Two-way audio. Built-in mic, external line input, external line output. MPEG-2 AAC-LC/G.711/G.726. 5m effective range |
| Storage | MicroSD / SDHC / SDXC, up to 1TB, plus NAS recording |
| Power | PoE (802.3af Class 3) or DC12V. Max 7.77W (PoE, typical 3.6W) / 7.44W (DC12V) |
| I/O | 1x digital input, 1x digital output (DO+: 12V 50mA; DO-: 30V Open Drain 1A) |
| System Memory | 256MB flash, 512MB RAM |
| AI Analytics | Vision Object Analytics (people, 4-wheeled vehicle detection, human/vehicle bestshot, path extraction), Smart VCA (intrusion, loitering, line-crossing) |
| Cybersecurity | Trend Micro IoT Security (1-year free trial), signed firmware |
| Protocols | ONVIF Profile G, S, T |
| Weather & Vandal Rating | IP66/67 + IK10 |
| Operating Temperature | -30°C to +60°C |
| Humidity | Up to 90% RH, non-condensing |
| Dimensions | Ø 133.7 x 103.8 mm |
| Weight | 758 g |
| DORI Distance (Wide/Tele) | Detect: 67.0m/205.7m; Observe: 26.7m/81.6m; Recognize: 13.3m/41.0m; Identify: 6.6m/20.5m |
| Color | White |
Similar products
-
VIVOTEK FD9380-HV-V2 C Series AI 5MP Outdoor Fixed Dome Camera
Price on request
-
VIVOTEK CC9381-HV 5MP IR Compact Panoramic Camera
Price on request
-
VIVOTEK FD9182-H 5MP Fixed Recessed Dome Camera
Price on request
-
VIVOTEK FD9383-HTV 5MP Motorised Varifocal Dome AI Camera
Price on request
-

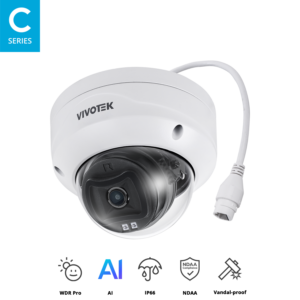

VIVOTEK FD9383-HV 5MP Outdoor Fixed Dome AI Camera
Price on request
Questions and answers
No questions about this product yet. Ask ours first, and a licensed installer will answer.
Get a quote for this product
Prefer the full form?
Tell us about the property and we will plan the cabling, power and recording with you. Mention the product above.
The full quote form opens as you scroll here.
Frequently Asked Questions
C Series AI is VIVOTEK's mid-tier product line that adds edge-based AI analytics, such as Vision Object Analytics and Smart VCA, to a standard fixed dome camera, without the extended feature set of the premium V Series.
Yes. The 2.7-13.5mm lens supports remote focus, so the field of view can be adjusted from the camera's web interface after mounting, without physically reaching the lens.
The two built-in IR LEDs illuminate up to 30 metres, with Smart IR automatically adjusting intensity so nearby objects are not overexposed.
It runs Vision Object Analytics for people and 4-wheeled vehicle detection with path extraction, plus Smart VCA for intrusion, loitering and line-crossing detection, all processed on the camera itself.
It supports PoE (IEEE 802.3af Class 3) or DC12V. Maximum power consumption is 7.77W over PoE (typical 3.6W) or 7.44W on DC12V.
Yes. It carries an IP66/67 weather rating plus IK10 vandal resistance, and is rated to operate from -30°C to +60°C, well within the range Melbourne's climate requires.
Yes. It supports ONVIF Profile G, S and T, so it can integrate with a wide range of third-party NVRs and VMS platforms in addition to VIVOTEK's own NVR range.
Yes. It supports two-way audio with a built-in microphone and external line input/output, with an effective range of 5 metres.
The box includes a quick installation guide, alignment sticker, screw pack, and cable gland. Contact Sipko Security if you need the full inventory confirmed before ordering.
This C Series AI model uses a single-range 2.7-13.5mm lens rather than the V Series' dual-range lens, has a shorter 30m IR range versus 50m, and a narrower AI feature set. It's a strong choice for standard commercial and residential coverage where the V Series' extended capabilities aren't required.
Smart AI Coverage Without the Premium Price Tag
The VIVOTEK FD9380-HTV-V2 pairs a motorised vari-focal lens with onboard AI detection and rugged outdoor protection, giving Melbourne properties reliable, intelligent coverage for everyday security needs.
