Bosch 3000 Series Alarm Kit with Icon Keypad, 3 x Bosch Gen2 PIRs and Ethernet Module
Bosch Solution 3000 Series Alarm Kit includes everything for a professional 8‑zone installation with remote IP connectivity.
$606.23 +GST
Complete kit – includes IP module, 3 PIRs, and all accessories. 3‑year warranty.
In stock
Solution 3000 Control Panel
8 on‑board zones, expandable, advanced features, and IP ready.
Icon Keypad (IUI-SOL-ICON)
Blue backlight, protective door, clear icons for easy operation.
3x Blue Line Gen2 PIRs
12m wall‑to‑wall, pet immune up to 20kg, dynamic temperature compensation.
Ethernet Module (B426-M) Included
Remote programming, app control, encrypted reporting – no phone line needed.
Note: ALL BOSCH ALARM SYSTEMS MUST BE INSTALLED BY A LICENSED SECURITY INSTALLER.
Keywords:
Bosch 3000 kit · Solution 3000 · IP module · icon keypad · PIR detectors · Melbourne

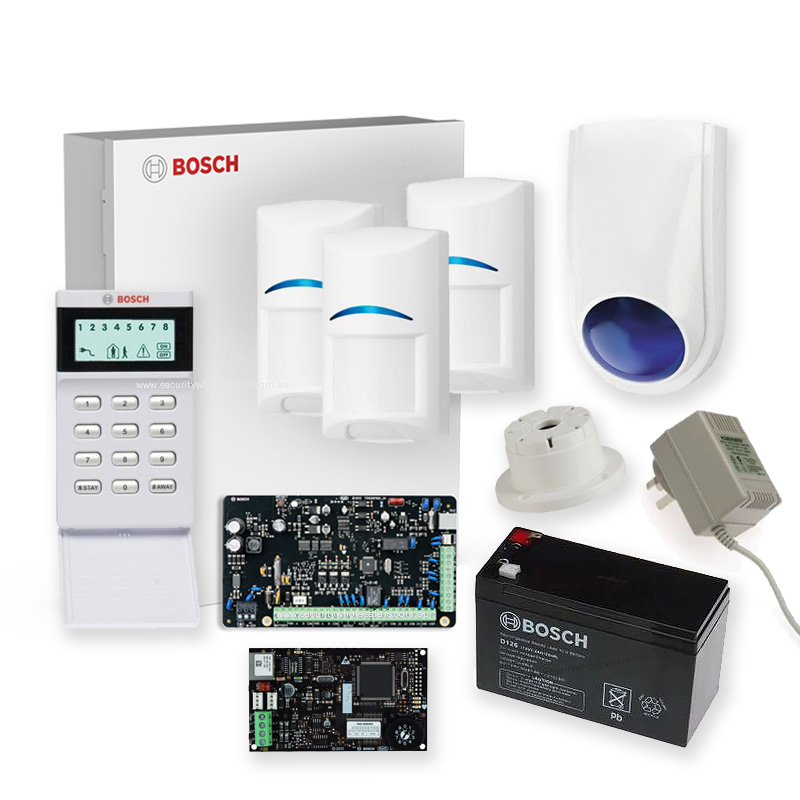

Package / Kit Inclusions
11+ items
- 1 x Bosch Solution 3000 Control Panel
- 1 x LCD Backlit 8 Zone Icon keypad (Blue Backlighting) (IUI-SOL-ICON)
- 3 x Blue Line Gen2 PIR Motion Detectors (BPR2-W12)
- 1 x Ethernet Communication Module (B426-M)
- 1 x Bosch 1.33AMP AC Transformer Plug Pack 18V
- 1 x Heavy Duty 12V, 7Ah Rechargeable Battery
- 1 x Metal enclosure with tamper switch
- 1 x Internal Siren (Piezo) 120 dB
- 1 x External Siren – with Strobe
- 8 x 3k3 resistors + 8 x 6k8 resistors
- 1 x User Manual/ Quick Reference Guide
* All components are brand new, genuine Bosch parts. 3‑year warranty.
Key Capabilities & Features
Expandable & connected
1
Integrated IP Communication
The B426‑M module enables remote programming via RPS, smartphone app control, and encrypted reporting to monitoring stations.
2
Intuitive Icon Keypad
Backlit LCD with clear icons shows system status (arm, alarm, trouble). Protective door and simple arming (code + [#AWAY]).
3
High‑Sensitivity Motion Detection
Three Blue Line Gen2 PIR sensors feature advanced detection, pet immunity up to 20kg, and 12m wall‑to‑wall coverage.
4
24/7 Tamper Protection
Both internal and external sirens include tamper switches and provide audible and visible deterrents with up to 120 dB sound and flashing strobe.
5
Power Reliability
Heavy‑duty 12V 7Ah battery and plug‑in transformer ensure continued operation during blackouts.
6
3‑Year Bosch Warranty
Long‑term protection from one of the world’s most trusted security brands.
Technical Specifications
Summary
Panel Type
Bosch Solution 3000 – 8 on‑board zones, expandable, supports IP communication
Keypad
IUI-SOL-ICON – LCD backlit icon keypad (blue backlight), protective door
PIR Detectors
3× BPR2-W12 Blue Line Gen2, 12m wall‑to‑wall, pet immune up to 20kg
IP Module
B426‑M – Ethernet communication, 128‑bit AES, remote programming, app support
Power Supply
18V AC 1.33A transformer + 12V 7Ah backup battery
Siren Output
Internal 120 dB piezo + external siren with strobe
Enclosure
Metal cabinet with tamper switch
Warranty
3 years back to base (Bosch Australia)
Ideal Use Cases
Versatile
🏠
Residential
Perfect for larger homes needing IP connectivity for remote arming and notifications.
🏪
Retail / Small Business
Protect shops, cafes, and offices with 8 zones, 3 PIRs, and remote management.
🏢
Commercial
Ideal for sites that require IP reporting and integration with monitoring centres.
Request Your Free Quote / Installation
Fast response
Interested in this Bosch 3000 kit with IP module? Tell us about your project and we’ll provide a clear quote and scope for Melbourne metro areas. Licensed installers only.
Frequently Asked Questions
10 FAQs
It has 8 on‑board zones and can be expanded with additional modules.
Yes, the B426‑M Ethernet Communication Module is included for remote programming and IP reporting.
Yes, the Blue Line Gen2 PIRs (BPR2-W12) are immune to pets up to 20 kg.
8× 3.3kΩ and 8× 6.8kΩ resistors for zone supervision.
IUI-SOL-ICON LCD icon keypad with blue backlight, protective door, and simple arming.
Yes, it includes a strobe and is designed for outdoor use.
3 years back to base from date of manufacture.
Yes, the panel supports expansion up to 16 zones.
All Bosch alarm systems must be installed by a licensed security installer.
Yes, with the included B426‑M module, you can use the Remote Security Control app (compatible panels).
Price Check Snapshot
Market reference
The Bosch 3000 Series 8 Zone Alarm Kit with IP Module is priced at $606.23 + GST. This represents a significant saving compared to buying each component separately. Contact us for bulk or trade discounts. If you have a like‑for‑like quote from another supplier, we’ll do our best to match it.
Additional Information
AUTHORIZED BOSCH DEALER
COMES WITH 3 YEAR WARRANTY. We are an authorized Bosch Security dealer – all products are genuine and supplied with full Australian warranty.
