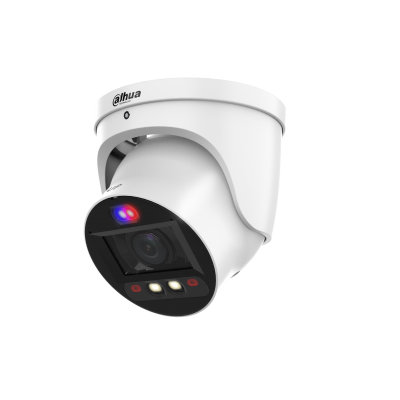

Dahua IPC-HDW3849H-ZAS-PV-ANZ 8MP TiOC 2.0 Motorised Turret Camera
The Dahua IPC-HDW3849H-ZAS-PV-ANZ is an advanced 8MP (4K) TiOC 2.0 turret camera designed for proactive deterrence and forensic‑grade imaging. It features a motorised 2.7–13.5mm varifocal lens for remote zoom, Smart Dual Light (30m IR + warm light) for full‑colour night vision, and SMD 4.0 AI that filters humans/vehicles from false alerts. Built‑in red/blue strobes and a 110dB siren with two‑way audio actively deter intruders. IP67 weatherproof and supports local MicroSD up to 256GB. Ideal for residential, retail and commercial sites.
SKU: IPC-HDW3849H-ZAS-PV
A$451.08 +GST
A$537.00 · 3 Year Warranty & Support included.
Contact SIPKO
8MP Ultra HD
3840×2160 @30fps – sharp evidence for face & number plate capture.
TiOC 2.0 Active Deterrence
Red/blue strobes + 110dB siren + two‑way audio – stops intruders in real time.
Motorised Varifocal Lens
2.7–13.5mm (F1.3) – remotely adjust zoom & focus after installation.
Smart Dual Light Night Vision
IR up to 30m / warm light up to 30m – full‑colour on‑demand or always‑on colour.
Melbourne installation note: TiOC 2.0 cameras benefit from precise tuning of the Smart Dual Light switching and SMD 4.0 zones. We pre‑configure deterrence schedules and two‑way audio sensitivity. For site‑specific advice, use our contact page or call us.
SEO Keywords:
IPC-HDW3849H-ZAS-PV
· 8MP TiOC 2.0 turret · motorised varifocal · Smart Dual Light · SMD 4.0 · active strobe siren · IP67 · Melbourne CCTV
Technical Specifications – 8MP TiOC 2.0 Turret
Quick‑Read Specs
Resolution
8MP (3840×2160) @ 25/30 fps
Sensor
1/2.8″ Progressive Scan CMOS
Lens
Motorised 2.7–13.5 mm varifocal, F1.3
Illumination
Smart Dual Light: IR 30m / warm light 30m
AI Analytics
SMD 4.0, perimeter protection (tripwire/intrusion), human/vehicle classification
Active Deterrence
Red/blue strobe, 110dB siren, two‑way talk (mic+speaker)
Storage
MicroSD up to 256GB · FTP · NAS · Dahua NVR
Rugged
IP67 weatherproof · 12V DC / PoE (802.3af)
Full Specifications
| Specification | Detail |
|---|---|
| Model | IPC-HDW3849H-ZAS-PV-ANZ |
| Resolution | 8MP (3840×2160) @ 25/30 fps |
| Sensor | 1/2.8″ CMOS |
| Lens | Motorised 2.7–13.5 mm, F1.3 |
| Angle of View | H: 112°–39°, V: 58°–22°, D: 136°–45° |
| Illumination | IR: 30m, Warm Light: 30m |
| Video Compression | H.265, H.264, Smart H.264+/H.265+ |
| WDR | 120 dB True WDR |
| Minimum Illumination | Colour: 0.008 lux, B/W: 0.001 lux |
| Audio | Two‑way (built‑in mic & speaker) |
| Alarm I/O | 1 input, 1 output |
| Storage | MicroSD, max 256GB |
| Network | ONVIF, HTTP, HTTPS, RTSP, FTP |
| Power | PoE (802.3af) / DC 12V |
| Protection | IP67 |
| Dimensions | Φ122mm × 106mm |
| Weight | 0.52 kg (Net) |
| Warranty | 3 years |
Installer tip: Mount at 2.5–4m height for optimal Smart Dual Light coverage. We recommend enabling “Smart Illumination” (IR only until target detected) to balance night‑time discretion and colour evidence.
Key Features – TiOC 2.0 Turret
TiOC 2.0 + WizSense
1
8MP 4K Ultra HD
3840×2160 resolution captures sharp facial features, licence plates and forensic details.
2
Smart Dual Light 2.0
Choose IR‑only, always‑on white light, or intelligent switching – colour night video when it matters.
3
Active Deterrence TiOC
Red/blue strobes + 110dB siren + two‑way audio. Pre‑recorded or live voice warnings.
4
SMD 4.0 AI Filtering
Distinguishes humans & vehicles from animals, leaves, headlights – false alarm rate <2%.
What is TiOC 2.0 and how does it work?
TiOC 2.0 Explained
TiOC (Three‑in‑One Camera) integrates 24/7 full‑colour monitoring, active deterrence, and AI into one smart solution. TiOC 2.0 refines Smart Dual Light switching and enhances alarm accuracy.
1
Smart Illumination Mode (Default)
IR is always on; when a human/vehicle is detected, the warm light activates for full‑colour recording.
2
IR Mode (Optional)
Only IR illuminator – ideal for discreet monitoring with no white light pollution.
3
White Light Mode (Optional)
Constant warm light for continuous colour footage; works as a visual deterrent itself.
4
Active Deterrence & Alarms
Red/blue strobes and 110dB siren trigger on perimeter violations. Two‑way talk enables real‑time intervention.
Accurate Alarm: TiOC 2.0 maintains a false alarm rate under 2% by combining SMD 4.0 with human/vehicle classification, filtering out animals, shadows and headlights.
Ideal Melbourne Applications
Best‑Fit Sites
1
Residential Driveways & Entrances
Motorised zoom lets you fine‑tune the view of your front door, gate or driveway. Deterrence alerts intruders instantly.
2
Retail Storefronts
Full‑colour night vision captures after‑hours activity. Two‑way audio allows staff to speak to visitors remotely.
3
Small Warehouses & Storage Yards
IP67 rating withstands harsh weather. SMD 4.0 cuts false alarms from stray animals or wind-blown debris.
4
Schools & Childcare Centres
Discreet turret design blends with architecture. Smart Dual Light can be set to IR‑only to avoid distraction.
Request Your Melbourne Installation Quote
Melbourne Service
Tell us about your installation location, preferred lens zoom range, night‑time lighting conditions, and whether you need deterrence active 24/7 or scheduled. We’ll pre‑configure your Dahua IPC‑HDW3849H‑ZAS‑PV for optimal Smart Dual Light and SMD 4.0 performance. Prefer to talk? Use our contact page or call.
Frequently Asked Questions – TiOC 2.0 Turret
10 FAQs
TiOC 2.0 (Three‑in‑One) combines full‑colour night vision, active deterrence (strobe/siren) and AI analytics (SMD 4.0) in a single camera, with smarter light switching and <2% false alarm rate.
Yes. The Smart Dual Light system can switch from IR to warm light when a target is detected, providing full‑colour footage even in total darkness (up to 30m).
Absolutely. The motorised varifocal lens (2.7–13.5mm) allows you to zoom and focus remotely via the web interface or DMSS app – no ladder required.
The built‑in speaker reaches up to 110dB – equivalent to a smoke alarm. You can also upload custom voice messages.
Smart Motion Detection 4.0 uses deep‑learning AI to distinguish humans and vehicles from other motion sources (animals, trees, rain, shadows). It dramatically reduces nuisance alerts.
Yes, it supports ONVIF Profile S/G/T. However, for full TiOC 2.0 functionality (AI metadata, one‑tap disarm, smart search), a Dahua NVR is recommended.
Yes. Built‑in microphone and speaker enable clear two‑way communication – you can listen and speak to visitors or intruders.
It supports up to 256GB. We recommend high‑endurance cards for continuous recording.
Yes. IP67 rating means it is dust‑tight and can withstand heavy rain, snow and temperatures from -30°C to +60°C.
3‑year warranty and Melbourne‑based technical support are included.
Price & Market Reference
AUD (+GST)
Dahua IPC‑HDW3849H‑ZAS‑PV‑ANZ is available for A$451.08 +GST (RRP A$537.00) with a full 3‑year warranty. For volume discounts, integrated NVR packages, or expedited shipping, please contact our Melbourne office.
Note: Installation and configuration are recommended to optimise Smart Dual Light switching and SMD 4.0 zones. We offer site surveys and turnkey commissioning.
