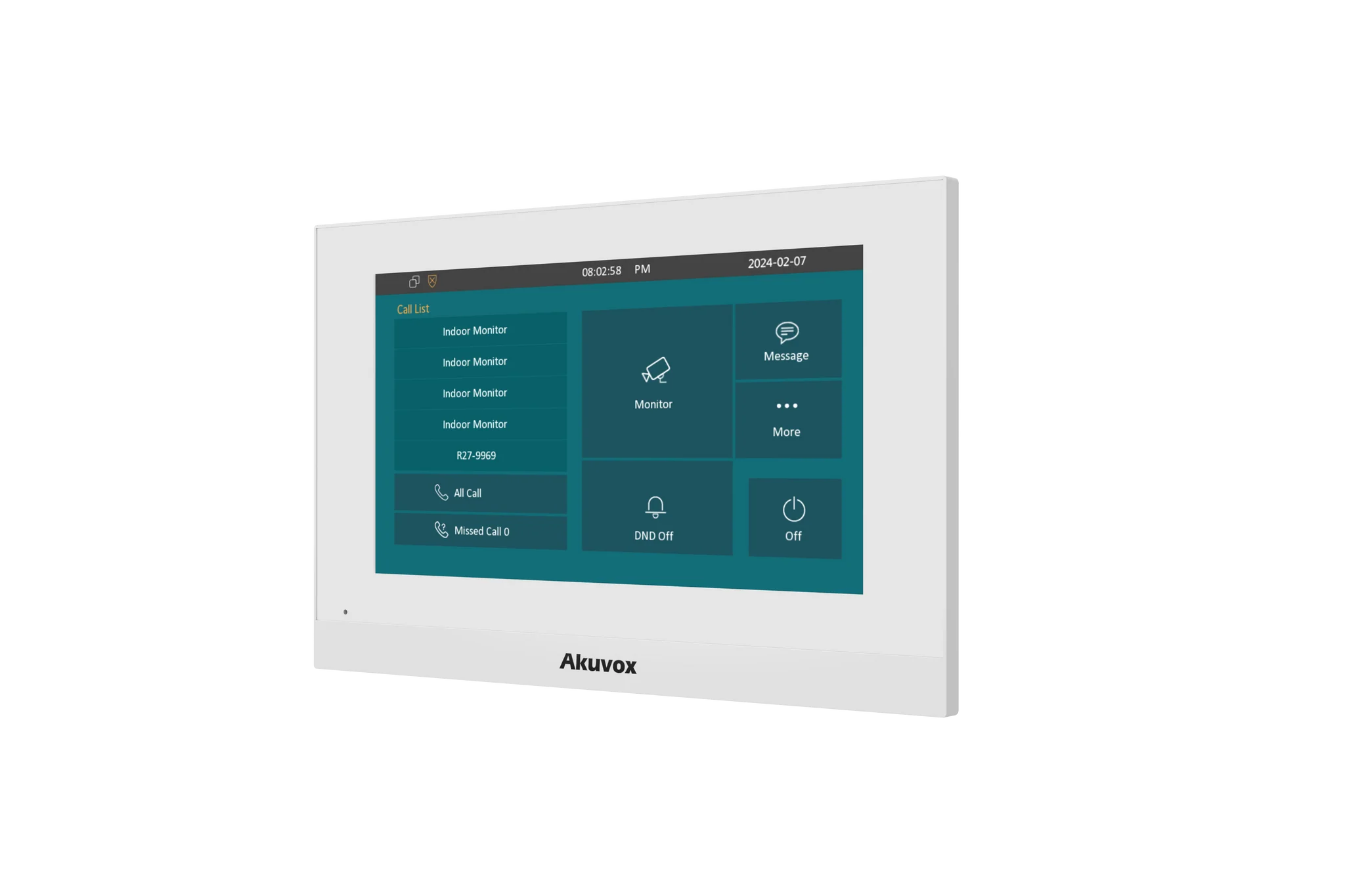

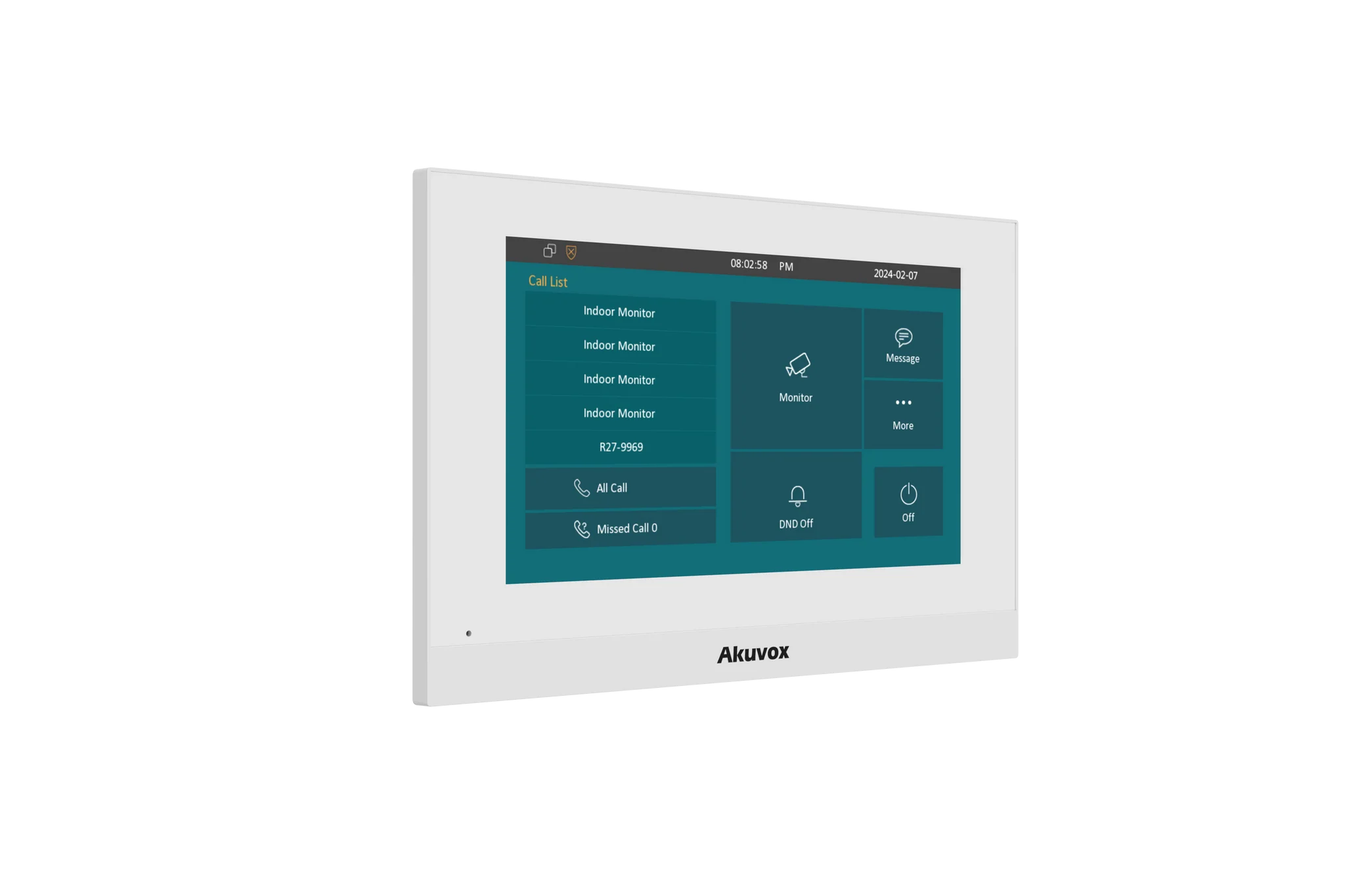

Akuvox C313W-2 7‑Inch 2‑Wire SIP Indoor Monitor (White) in Melbourne
A slim Linux‑based 7″ touchscreen indoor monitor built for 2‑wire retrofit intercom projects.
Supports SIP calling, Wi‑Fi, and Ethernet for apartment upgrades and multi‑dwelling installs where pulling new cabling is expensive.
$299.00+GST
Public reference: AUD $299.00 +GST. Final install pricing varies by site and system design.
Price checked (public listings)
2‑wire retrofit ready
Designed to reuse existing 2‑wire cabling to reduce rewiring on building upgrades.
7″ capacitive touchscreen
1024×600 display with projected capacitive touch and energy‑saving mode.
Wi‑Fi + Ethernet
2.4GHz Wi‑Fi (802.11 b/g/n) plus RJ45 10/100 for stable site networks.
SIP intercom calling
Two‑way audio/video calling with door stations using SIP v2.0 and H.264 streaming.
Melbourne installs: Best fit for apartment retrofits, office reception, and multi‑dwelling upgrades where existing wiring is kept.
We’ll confirm cable condition, NS‑2 requirements, and a clean SIP provisioning plan.
Keywords:
Akuvox indoor monitor
· C313W‑2 White · 2‑wire intercom · SIP video intercom · apartment retrofit
Technical Specifications
Quick Specs
Display
7″ TFT LCD + projected capacitive touch, 1024×600 resolution, energy‑saving mode.
2‑Wire Ports
2‑wire interface for retrofit deployments (commonly paired with NS‑2 and a compatible 2‑wire door station).
Networking
Wi‑Fi 2.4GHz (802.11 b/g/n) + RJ45 10/100 Ethernet. Supports common IP protocols (NTP, HTTPS, RTP/RTSP, etc.).
Audio & SIP
SIP v1/v2, two‑way audio, echo cancellation. Common codecs include G.711a/μ, G.729, G.722.
Video
H.264 video stream support for door station video preview and intercom calls.
Power
Typically powered via NS‑2 in 2‑wire systems, or via external 48V DC depending on design.
I/O & Interfaces
Common interfaces include relay output, bell input, RS485 (varies by system wiring plan and deployment).
Mounting & Size
Wall‑mounted or desktop. Supports US/EU wall boxes. Approx size: 200.2×132.2×27.2mm.
For Melbourne apartment retrofits, we typically pair this monitor with an Akuvox 2‑wire door station and an NS‑2 controller to keep existing cabling and modernise the user experience.
Why Choose This Akuvox Indoor Monitor in Melbourne
Built for retrofits
1
Cleaner retrofit upgrades
Reuse existing 2‑wire cabling to reduce disruption and speed up multi‑unit upgrades.
2
Better resident experience
Touchscreen call handling and clear video preview for smoother visitor management.
3
SIP ecosystem integration
Works within SIP intercom deployments and can be aligned to concierge/after‑hours call flows.
4
Flexible network options
Wi‑Fi or Ethernet depending on your building network and stability needs.
Our Seamless Installation Process
Step-by-step
1
Site check
Confirm monitor location, wall box, and condition/length of existing 2‑wire cabling.
2
Mount + wire
Mount wall/desk setup and terminate 2‑wire + network (Wi‑Fi/Ethernet) based on site plan.
3
System setup
Pair with door station/NS‑2, provision SIP accounts, and validate audio/video streams.
4
Handover
End‑to‑end testing, resident/manager walkthrough, and a short handover guide.
Tip: For 2‑wire installs, we sanity‑check cable joints, length, and power method (NS‑2 vs external 48V DC) before lock‑in.
Request Your Free Installation Quote
Fast response
Share your building type (apartment / office), number of monitors, and whether you’re keeping existing 2‑wire cabling. We’ll respond with a clear scope, supply list, and installation quote.
Frequently Asked Questions
10 FAQs
Yes. It’s designed for retrofit scenarios where existing 2‑wire cabling is reused, which is common in older apartment and multi‑dwelling upgrades.
Yes. In most deployments it’s paired with an Akuvox NS‑2 and a compatible 2‑wire door station to deliver SIP audio/video over existing wiring.
Yes. It supports 2.4GHz Wi‑Fi (802.11 b/g/n). Where possible, Ethernet is recommended for maximum stability in dense buildings.
Often yes as part of an Akuvox ecosystem (e.g., SmartPlus app accounts). Capability depends on the overall intercom configuration and licences.
Yes. It supports SIP standards (v1/v2). We’ll confirm your call flow (units, concierge, after‑hours) and configure accordingly.
In 2‑wire deployments, it’s commonly powered via NS‑2, or via an external 48V DC supply depending on the building design.
It supports wall‑mounted installation and can fit common US/EU wall boxes. We’ll recommend the cleanest option for your wall type and cable route.
Typical indoor operating range is around -10°C to +45°C. Indoor placement is recommended for best longevity.
It supports common I/O interfaces (e.g., relay output / bell input / RS485 depending on deployment). Door release is typically handled via the door station and controller.
A site check, mounting, wiring, SIP provisioning, and end‑to‑end testing with your door station and network. We’ll provide a clean handover and short usage guidance.
Price Check Snapshot
Market reference
We referenced a public Australian listing showing AUD $299.00 +GST for the Akuvox C313W‑2 (2‑wire Wi‑Fi indoor monitor). Our displayed figure converts this to AUD $299.00 + GST. If you have a like‑for‑like written quote for the same model/colour, share it and we’ll try to match where possible.
